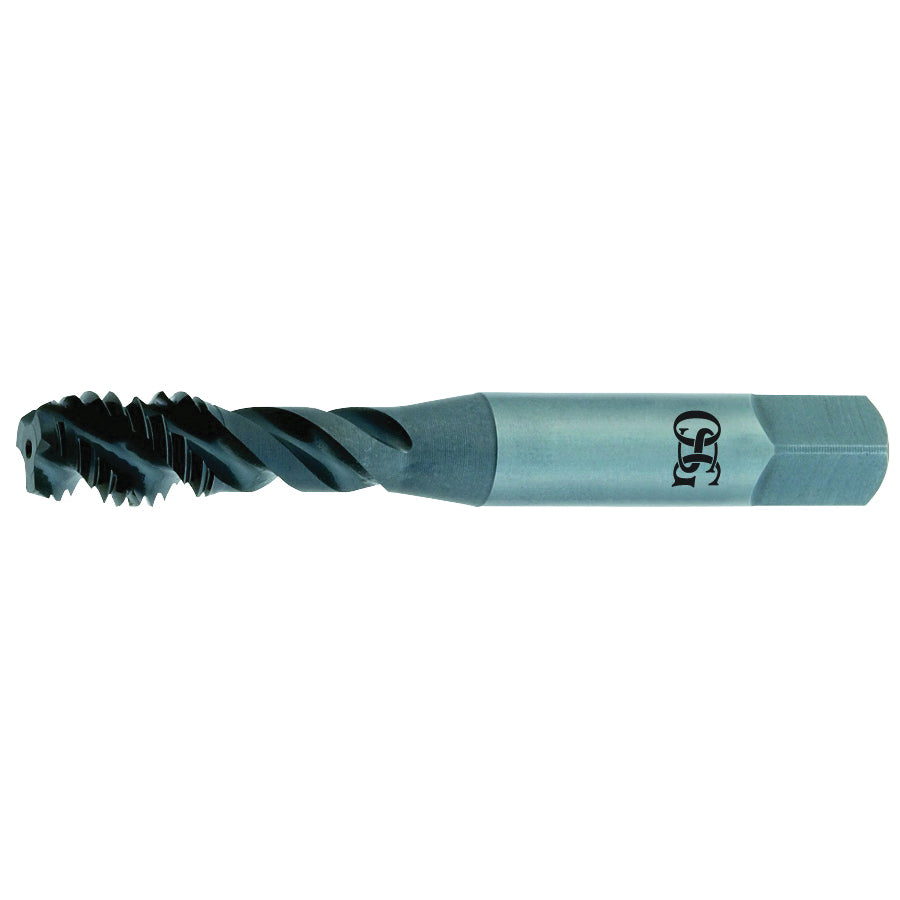

OSG 2930000 HY-PRO 290 Premium Spiral Flute Tap Right Hand Cutting 1/4-20 Thread

Product Description

The OSG 2930000 is a HY-PRO 290 Premium Spiral Flute Tap designed for right-hand cutting applications. This tap features a size of one-fourth inch with a 1/4-20 thread. It has a special two-point five P to three P modified bottoming chamfer that allows efficient cutting in various materials.

• Durable HSSE material
• Three flutes for optimal chip evacuation
• Thread length of 0.397 inches

Product Highlights

This tap is suitable for use in alloy steel, cast iron, die steel, hardened steel, low, medium, and high carbon steel, as well as stainless steel.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG

Technical Specifications

• Size: 1/4 inch
• Type: Premium
• Series: 290
• Material: HSSE
• Thread Size: 1/4-20
• Chamfer Type: 2.5P-3P Modified Bottoming
• Shank Length: 1-1/2 inches
• Thread Limit: H3
• Thread Length: 0.397 inches
• Finish/Coating: Bright
• Overall Length: 2-1/2 inches
• Shank Diameter: 0.255 inches
• Thread Standard: UNC
• Number of Flutes: 3
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Alloy Steel, Cast Iron, Die Steel, Hardened Steel, Low/Medium/High Carbon Steel, Stainless Steel
• Through Coolant: No
