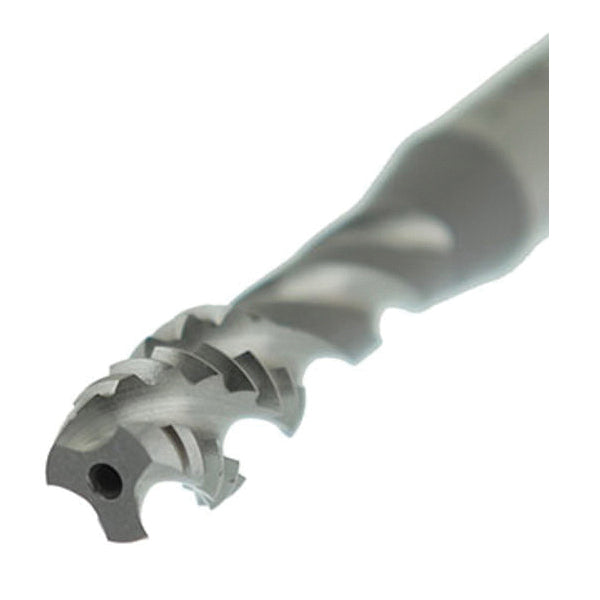

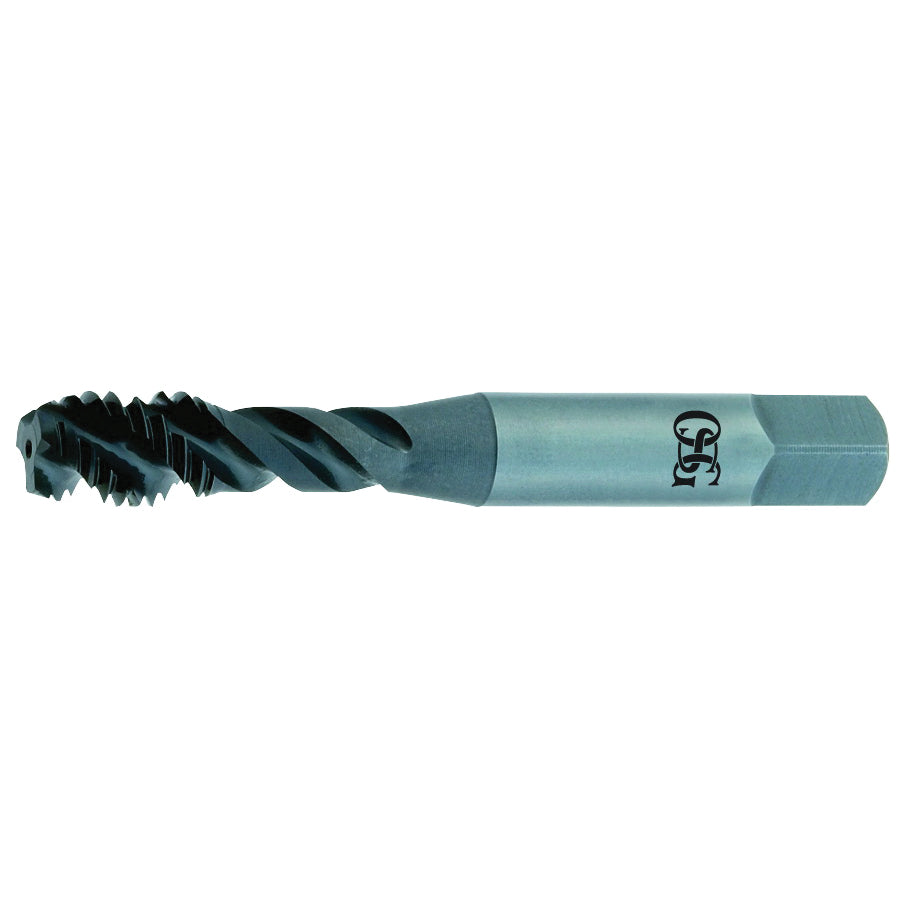

OSG 2912400 HY-PRO 290 Premium Spiral Flute Tap Right Hand Cutting 6-32 Thread H3 Thread Limit

Product Description

The OSG 2912400 HY-PRO 290 Premium Spiral Flute Tap offers a reliable solution for threading applications. This tap features right hand cutting and is designed specifically for 6-32 threads. Its H3 thread limit and 2.5P-3P modified bottoming chamfer enable efficient usage in various materials.

• Made from HSSE material for increased wear resistance
• Three flutes for improved chip evacuation
• Bright surface finish enhances lubricity and reduces wear

Product Highlights

The OSG HY-PRO 290 series is suitable for use in alloy steel, cast iron, die steel, hardened steel, and stainless steel. Available in imperial measurement system.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG
• Country of Origin: MX

Technical Specifications

• Size: #6
• Type: Premium
• Series: 290
• Material: HSSE
• Thread Size: 6-32
• Chamfer Type: 2.5P-3P Modified Bottoming
• Shank Length: 1-5/16 inches
• Thread Limit: H3
• Thread Length: 0.248 inches
• Overall Length: 2 inches
• Shank Diameter: 0.14 inches
• Thread Standard: UNC
• Number of Flutes: 3
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Alloy Steel, Cast Iron, Die Steel, Hardened Steel, Low/Medium/High Carbon Steel, and Stainless Steel
• Through Coolant: No
