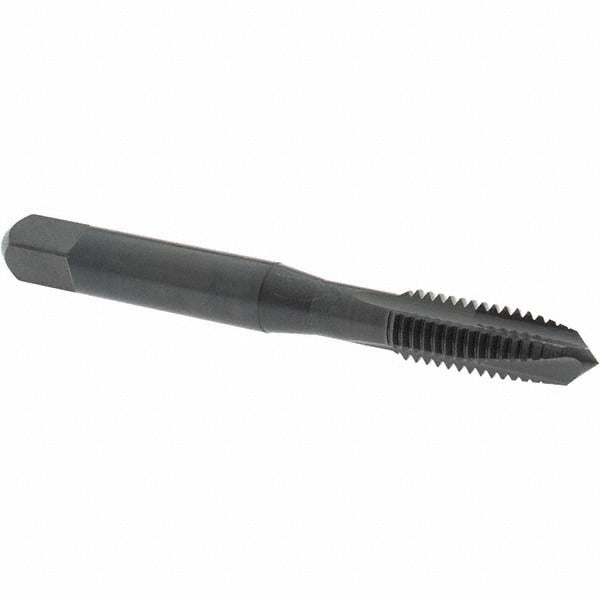

Osg 2888401 Spiral Point Tap M8x1.25 Metric Coarse 6H Hss

Product Description

The OSG 2888401 is a spiral point tap designed for threading M8x1.25 metric coarse holes in a production or job-shop environment. It features a plug chamfer for through-hole applications and a 6H class of fit, which is the standard tolerance for general-purpose metric fastener threads. Constructed from high-speed steel with a steam oxide coating, this tap is built to resist heat and light corrosion during cutting operations. The spiral point geometry pushes chips forward ahead of the tap, keeping the flute area clear and allowing consistent thread formation at higher feed rates compared to a hand tap.

This tap is suited for through-hole tapping in aluminum, cast aluminum, low-carbon steel, and medium-carbon steel. The plug chamfer makes it the right choice when the tap can pass fully through the workpiece, allowing chips to exit cleanly out the bottom of the hole. It is commonly used on CNC machining centers, drill presses, and tapping machines in light manufacturing, maintenance and repair, and production machining applications. Right-hand thread direction is standard, matching the vast majority of metric fastener specifications.

Key Features

• Spiral point geometry pushes chips forward for clean through-hole threading
• Plug chamfer provides smooth thread lead-in in through-hole applications
• 6H class of fit suits general-purpose metric fastener thread tolerances
• Steam oxide coating reduces friction and provides light corrosion resistance
• High-speed steel construction withstands heat generated during tapping operations
• Compatible with aluminum, cast aluminum, low-carbon steel, and medium-carbon steel workpieces

Compatibility

Designed for through-hole tapping in aluminum, cast aluminum, low-carbon steel, and medium-carbon steel. Part of OSG Series 288.

Installation Notes

This tap should be installed by a machinist or tooling technician using a properly sized tap holder or rigid tapping chuck. Ensure the spindle speed and feed rate are set per the machine tool manufacturer and tooling guidelines for the workpiece material before starting the cut. Apply cutting fluid appropriate for the material being tapped to extend tool life and improve thread finish. Inspect the tap for chipping or wear before each use and replace if damaged to avoid thread damage or tap breakage in the workpiece.
