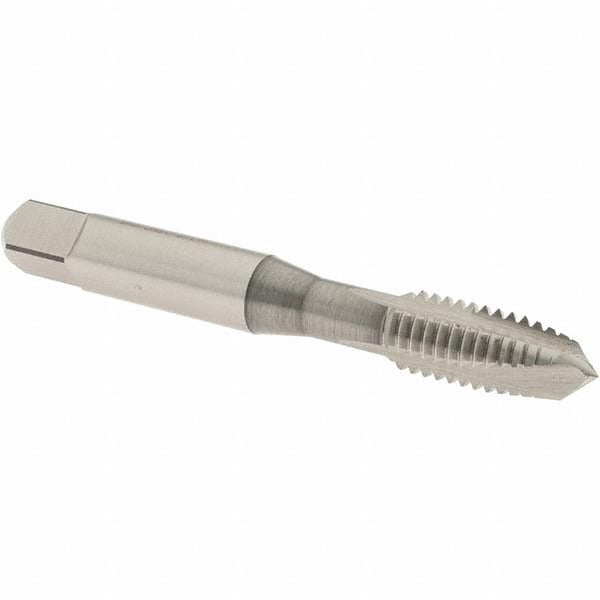

Osg 2841600 Spiral Point Tap 3/8-16 Unc Plug H5 Hss

Product Description

The OSG 2841600 is a spiral point tap designed for cutting internal 3/8-16 UNC threads in through-hole applications. Made from vanadium high-speed steel (HSS-E), it delivers improved wear resistance and edge retention compared to standard HSS. The plug chamfer distributes cutting load across the first several threads, making it well suited for general-purpose tapping in production and maintenance environments. At 2.937 inches overall length with a thread length of 0.752 inches, it fits standard tap holders and CNC rigid tapping setups. The H5 thread limit and 2B class of fit produce threads within the tolerance range required for standard fastener assembly. Bright finish, no coolant-through capability.

This tap is intended for tapping through holes in a wide range of materials including low-carbon, medium-carbon, high-carbon, and alloy steels, die steel, stainless steel, hardened steel, cast iron, and aluminum. The spiral point geometry pushes chips forward ahead of the tap, keeping the flutes clear and reducing the risk of chip packing in through-hole work. It is appropriate for both manual tapping with a tap wrench and machine tapping on drill presses, CNC machining centers, and tapping machines with rigid or floating tap holders.

Key Features

• Vanadium high-speed steel (HSS-E) construction for enhanced wear resistance and extended tool life
• Spiral point geometry pushes chips forward, suitable for through-hole tapping
• 3 flutes with plug chamfer for balanced cutting load across initial thread engagement
• H5 thread limit with 2B class of fit for standard fastener assembly tolerance
• Right-hand thread direction, no coolant-through required
• Bright finish with no coating, allowing direct inspection of tool wear

Compatibility

Designed for cutting 3/8-16 UNC internal threads in through-hole configurations across aluminum, cast iron, alloy steel, stainless steel, die steel, hardened steel, and carbon steel workpieces.

Installation Notes

Installation and use of this tap should be performed by qualified machinists or tooling technicians familiar with threading operations. Before tapping, ensure the drill press, CNC spindle, or tapping machine is powered down and secured during tool changes. Use the correct tap drill size for 3/8-16 UNC to achieve the specified thread engagement before starting the operation. Apply appropriate cutting fluid for the workpiece material to extend tool life and improve thread finish.
