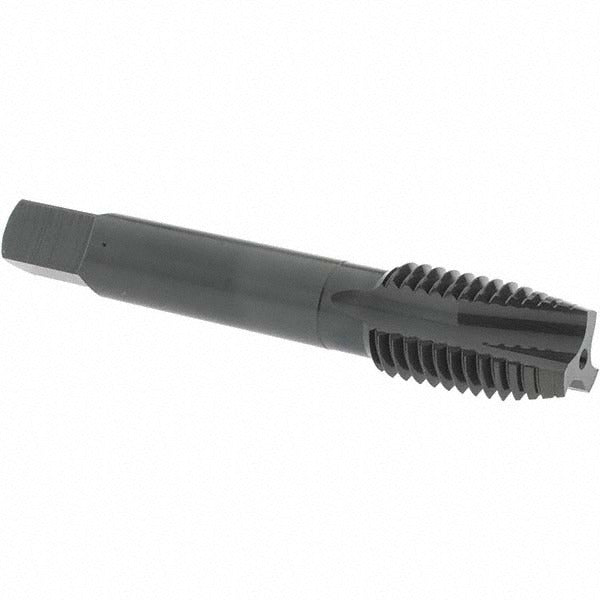

Osg 2833601 Spiral Point Tap 3/4-10 Unc Plug Hss

Product Description

The OSG 2833601 is a spiral point plug tap designed for threading through-holes in a wide range of ferrous and non-ferrous metals. Built from Vanadium High Speed Steel (HSS-E) with a steam oxide coating, it offers improved lubricity and chip evacuation compared to standard uncoated taps. The plug chamfer distributes cutting forces across several leading threads, making it well suited for production tapping operations. With a thread size of 3/4-10 UNC and a right-hand thread direction, it produces standard unified coarse threads. The H3 thread limit provides a controlled fit tolerance appropriate for most general-purpose threaded assemblies.

This tap is intended for use in through-hole tapping applications across a broad range of workpiece materials. Suitable material applications include aluminum, low-carbon steel, medium-carbon steel, high-carbon steel, alloy steel, die steel, stainless steel, hardened steel, and cast iron. It is commonly used in CNC machining centers, drill press tapping operations, and manual tapping fixtures in production and job shop environments. Coolant-through capability is not included, so external cutting fluid application is recommended for harder materials.

Key Features

• 3/4-10 UNC right-hand thread form with H3 thread limit for controlled fit tolerance
• Plug chamfer design distributes cutting load across multiple lead threads for smooth entry
• Vanadium High Speed Steel (HSS-E) construction provides elevated wear and heat resistance
• Steam oxide coating improves lubricity and reduces galling during thread forming
• 3-flute geometry supports efficient chip pushing ahead of the tap in through-hole applications
• Series 280 designation — no coolant-through, no interrupted thread, no oversize

Compatibility

Designed for through-hole tapping of 3/4-10 UNC threads in compatible materials including aluminum, cast iron, low-, medium-, and high-carbon steel, alloy steel, die steel, stainless steel, and hardened steel.

Installation Notes

This tap is installed by licensed machinists or qualified tooling technicians using a tapping head, CNC rigid tapping cycle, or manual tap handle. Ensure the spindle is properly aligned with the drilled pilot hole before engagement to prevent tap breakage. Apply a suitable cutting fluid or tapping compound to the workpiece, particularly when threading stainless steel or hardened materials. Verify the pilot hole diameter meets the 3/4-10 UNC specification before tapping.
