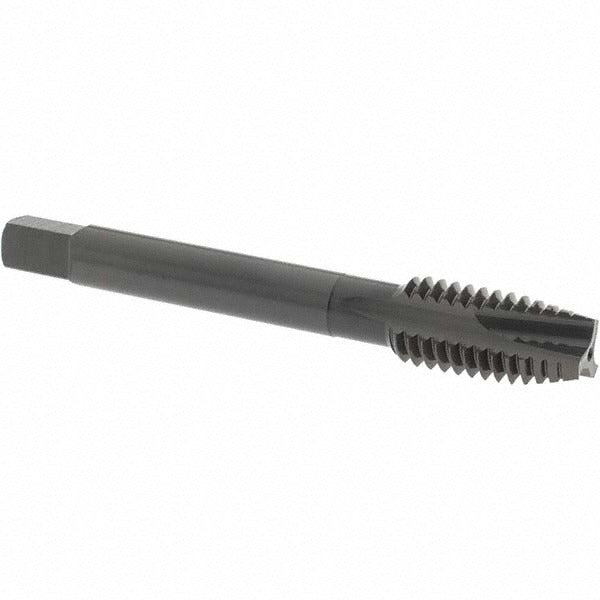

Osg 2832001 Spiral Point Tap 7/16-14 Unc 3 Flute

Product Description

The OSG 2832001 is a spiral point plug tap designed for threading 7/16-14 UNC holes in a wide range of ferrous and non-ferrous metals. Built from vanadium high-speed steel (HSS-E) with a steam oxide coating, it drives chips forward ahead of the cutting edge, making it well suited for through-hole tapping operations. The plug chamfer eases entry and distributes cutting load across the first few threads. Thread limit is H3, providing the tolerance class most commonly specified for standard unified coarse thread fits. Overall length is 3.157 inches with a thread length of 0.858 inches and a shank diameter of 0.323 inches.

This tap is used in production and maintenance machining environments where through-hole tapping in steel, cast iron, aluminum, and similar materials is required. Typical applications include fabrication shops, tool rooms, and field maintenance operations. The right-hand cut and standard UNC thread form make it a direct fit for the most common fastener thread specifications encountered in industrial and mechanical assembly work. It is suitable for use in hand tapping, drill press, and CNC tapping operations without coolant-through requirements.

Key Features

• Spiral point geometry pushes chips forward, reducing chip jamming in through-hole applications
• Vanadium high-speed steel (HSS-E) construction provides increased wear resistance over standard HSS
• Steam oxide coating reduces friction and improves lubrication retention during tapping
• H3 thread limit suits standard tolerance fits for 7/16-14 UNC fasteners
• Plug chamfer with 3 flutes balances cutting speed and tool strength
• No coolant-through requirement simplifies setup in standard shop environments

Compatibility

Designed for through-hole tapping in aluminum, hardened steel, stainless steel, high-carbon steel, low-carbon steel, medium-carbon steel, alloy steel, die steel, and cast iron. Series 280.

Installation Notes

Installation should be performed by a machinist or qualified technician familiar with tapping operations and thread standards. Ensure the workpiece is securely fixtured and that the correct tap drill size for 7/16-14 UNC is used prior to tapping. Apply appropriate cutting fluid to reduce heat and extend tool life. Do not force the tap if resistance increases suddenly, as this may indicate chip packing or workpiece hardness beyond the tool rating.
