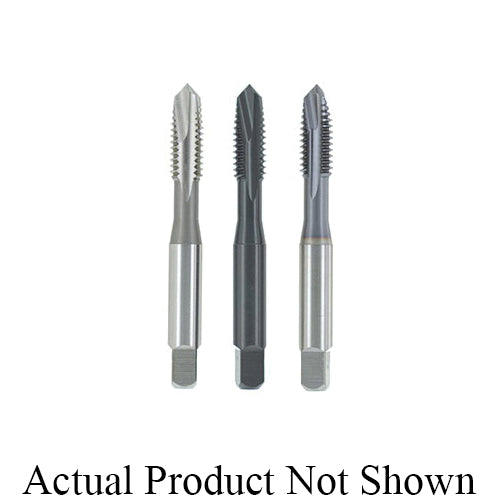

OSG 2831601 3/8-16 HY-PRO Spiral Point Plug Tap

Product Description

The OSG 2831601 is a high-performance 3/8-16 HY-PRO spiral point plug tap made from high-speed steel with a steam oxide finish. This tap is designed for creating screw threads in various materials. It is ideal for applications in industries that require precise threading, such as automotive and machinery manufacturing.

• HSSE material for enhanced wear resistance
• Spiral point design for improved tapping in through holes
• Compatible with various materials including steel and stainless steel

Product Highlights

The OSG 2831601 tap is part of the HY-PRO series, recognized for its reliability in producing high-precision threads.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG

Technical Specifications

• Series: HY-PRO 280
• Material: HSS-E
• Thread Size: 3/8-16
• Chamfer Type: 3.5P-4.5P Plug
• Thread Limit: H3
• Thread Length: 0.751 inches
• Finish/Coating: Steam Oxide
• Overall Length: 2.93 inches
• Shank Diameter: 0.38 inches
• Thread Standard: UNC
• Number of Flutes: 3
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Steel, Stainless Steel, Tool Steel, Die Steel, Nickel Alloys
• Through Coolant: No
