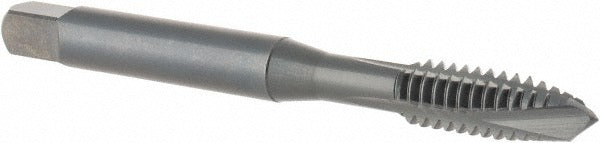

Osg 2830001 Spiral Point Tap 1/4-20 Unc 3 Flute Plug

Product Description

The OSG 2830001 is a spiral point tap designed for cutting 1/4-20 UNC internal threads in a wide range of ferrous and non-ferrous materials. The spiral point geometry pushes chips forward ahead of the tap, keeping the flutes clear and reducing the risk of tap breakage in through-hole applications. Made from vanadium high speed steel with a steam oxide coating, this tap delivers good wear resistance and lubricity across a broad range of materials. It features a plug chamfer, 3 flutes, an H3 thread limit, and a 3B class of fit. Overall length is 2.5 inches with a thread length of approximately 0.594 inches.

This tap is suited for through-hole threading operations in machine shops, maintenance facilities, and production environments. It is commonly used by machinists and maintenance technicians working with aluminum, cast iron, low-carbon steel, medium-carbon steel, high-carbon steel, alloy steel, die steel, stainless steel, and hardened steel. The plug chamfer makes it appropriate for starting in a hole and running through, requiring a clear chip-exit path at the bottom. It is part of OSG Series 280 and is sized for use in standard 1/4-20 tapped holes found across general mechanical assemblies.

Key Features

• Spiral point geometry pushes chips forward, ideal for through-hole applications
• Vanadium high speed steel construction for durability across a range of workpiece materials
• Steam oxide coating improves lubricity and reduces galling
• Plug chamfer for reliable thread entry and through-hole use
• H3 thread limit and 3B class of fit for standard tolerance threading
• Right-hand thread direction, no coolant-through requirement

Compatibility

Designed for threading 1/4-20 UNC through-holes in aluminum, hardened steel, stainless steel, high-carbon steel, low-carbon steel, medium-carbon steel, alloy steel, die steel, and cast iron. Part of OSG Series 280.

Installation Notes

Install and operate this tap using a machine tap holder, tapping head, or CNC spindle set to right-hand rotation. Power down all equipment and secure the workpiece before setting up. Use appropriate tapping fluid or cutting oil for the workpiece material to extend tap life and improve thread finish. Inspect the through-hole for adequate clearance at the exit before threading to allow chips to evacuate freely.
