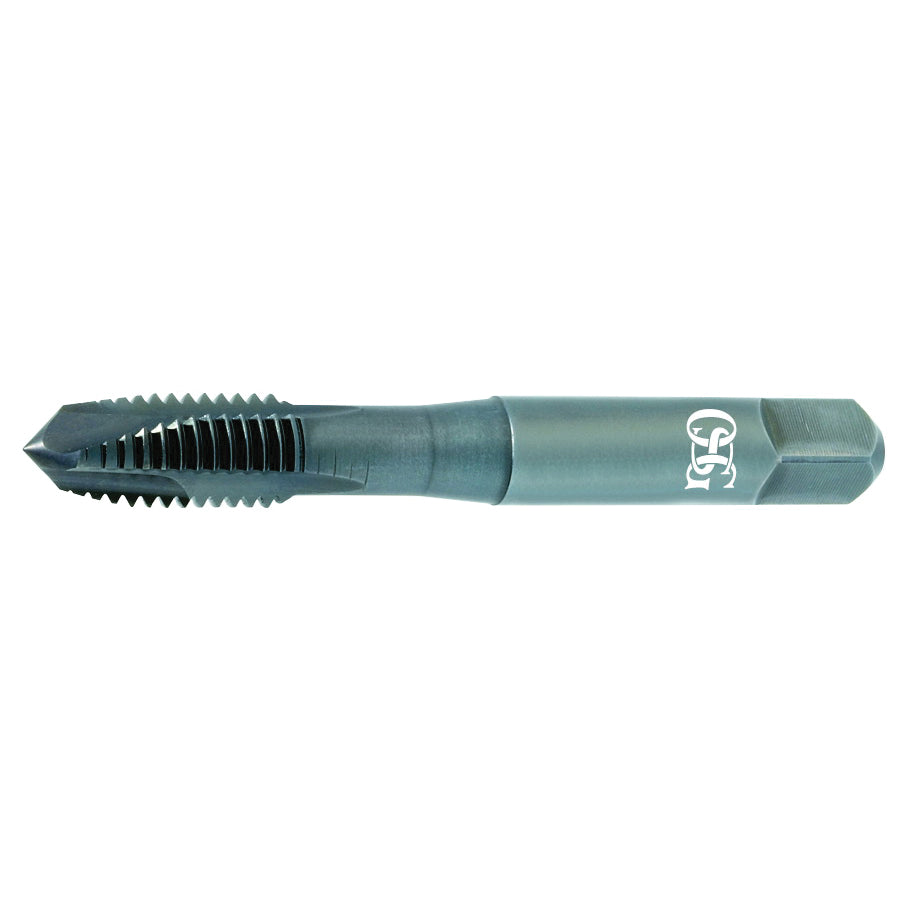

OSG 2827601 HY-PRO 280 Spiral Point Tap Right Hand Cutting 1/2-20 Thread H2 Thread Limit

Product Description

The OSG 2827601 is a HY-PRO 280 Spiral Point Tap designed for efficient threading in various materials. This tap features a right hand cutting design and a thread size of one half inch with a twenty threads per inch configuration. It is made from HSS-E material, ensuring durability and extended tool life.

• HSS-E material enhances wear resistance
• Three flutes provide efficient chip removal
• Steam oxide finish increases lubricity

Product Highlights

This tap is suitable for use in alloy steel, cast iron, die steel, hardened steel, and stainless steel applications. It features a plug chamfer of 3.5P to 4.5P, allowing for improved performance in blind hole applications.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG

Technical Specifications

• Series: 280
• Material: HSS-E
• Thread Size: 1/2-20
• Chamfer Type: 3.5P-4.5P Plug
• Class of Fit: 6H
• Shank Length: 2 inches
• Thread Length: 0.921 inches
• Overall Length: 3.37 inches
• Shank Diameter: 0.367 inches
• Number of Flutes: 3
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Thread Standard: UNF
• Material Application: Alloy Steel, Cast Iron, Die Steel, Hardened Steel, Low/Medium/High Carbon Steel, Stainless Steel
• Through Coolant: No
