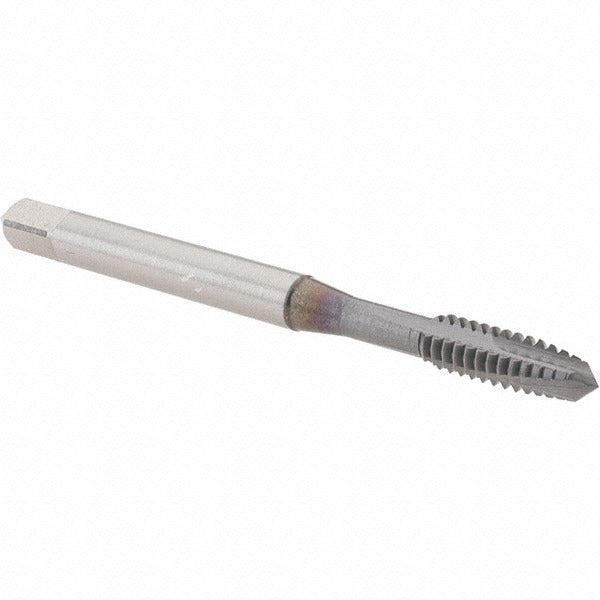

Osg 2813408 Spiral Point Tap 10-24 Ticn Hss

Product Description

The OSG 2813408 is a spiral point tap designed for machine tapping of through-hole threads in a wide range of metals. Built from High-Speed Steel-E (HSS-E) with a TiCN (Titanium Carbonitride) coating, it produces 10-24 UNC right-hand threads with a plug chamfer for reliable thread lead-in. The 3-flute spiral point geometry pushes chips forward ahead of the tap, keeping the flute area clear during blind or through-hole operations. Thread limit is H3, providing close tolerance fit for standard 10-24 applications. Overall length is 2.374 inches with a shank diameter of 0.194 inches.

This tap is suited for production and maintenance machining environments where consistent thread quality in ferrous and non-ferrous materials is required. Applicable materials include aluminum, low-carbon steel, medium-carbon steel, high-carbon steel, alloy steel, die steel, stainless steel, cast iron, and hardened steel. The plug chamfer style makes it appropriate for through-hole tapping on CNC machining centers, drill presses, and tapping machines where chip evacuation is managed by forward chip flow.

Key Features

• TiCN coating increases surface hardness and reduces friction for extended tool life in abrasive materials
• High-Speed Steel-E base material provides toughness in interrupted or variable-load cuts
• Spiral point geometry pushes chips forward, reducing recutting in through-hole applications
• Plug chamfer provides gradual thread lead-in for smooth machine tapping starts
• H3 thread limit ensures consistent tolerance for standard 10-24 UNC fit classes
• No coolant-through requirement simplifies setup on standard tapping equipment

Compatibility

Designed for 10-24 UNC through-hole tapping in aluminum, stainless steel, cast iron, and carbon and alloy steels. Verify spindle collet or chuck accepts a 0.194-inch shank diameter before installation.

Installation Notes

This tap is installed and operated by machinists and tool-and-die professionals using standard tapping chucks, collets, or rigid holders on machine tools. Ensure the workpiece is securely fixtured and the spindle speed is set to a value appropriate for the workpiece material before beginning the tapping cycle. Use an appropriate cutting fluid for the material being tapped to reduce heat buildup and extend tap life. Inspect the tap for chipping or wear before each use, as a damaged tap can cause thread damage or tap breakage in the bore.
