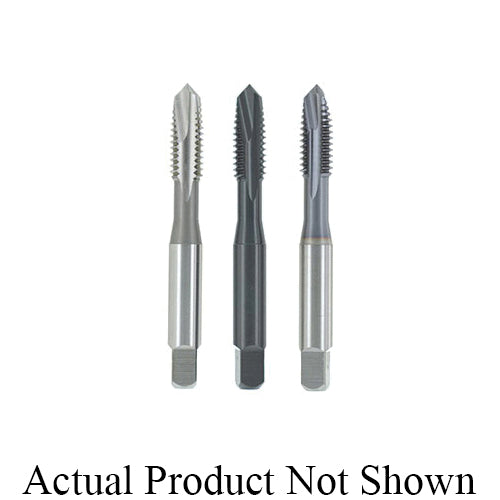

OSG 2812801 #8-32 HY-PRO Spiral Point Plug Tap, HSSE, 3-Flute, H3, Steam Oxide Finish

Product Description

The OSG 2812801 is a #8-32 HY-PRO Spiral Point Plug Tap made from high-speed steel, suitable for various applications. This tap features a three-flute design that enhances chip removal and helps in achieving better threading accuracy. The steam oxide finish increases durability and wear resistance.

• HSSE material for increased wear resistance
• Spiral point design for through hole applications
• Right-hand cutting direction for efficient threading

Product Highlights

This tap is used to cut screw threads on the inside surfaces of holes. It is ideal for applications requiring precision, such as in automotive engines.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG

Technical Specifications

• Series: HY-PRO 280
• Material: HSS-E
• Thread Size: #8-32
• Chamfer Type: 3.5P-4.5P Plug
• Thread Limit: H3
• Thread Length: 0.374 inches
• Finish/Coating: Steam Oxide
• Overall Length: 2.12 inches
• Shank Diameter: 0.167 inches
• Thread Standard: UNC
• Number of Flutes: 3
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Steel, Stainless Steel, Tool Steel, Die Steel and Nickel Alloys
• Through Coolant: No
