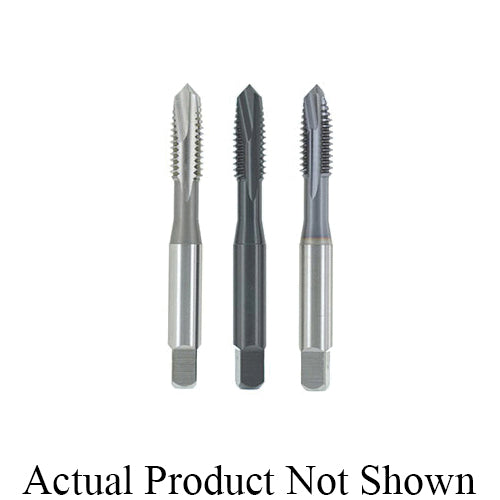

OSG 2807801 #8-32 HY-PRO Spiral Point Plug Tap

Product Description

The OSG 2807801 #8-32 HY-PRO Spiral Point Plug Tap is manufactured by OSG. This tap is made from high-speed steel and features a steam oxide finish. It is ideal for a variety of tapping applications.

• HSSE material - Increases wear resistance
• Spiral point design for through-hole applications
• 3 flute design for efficient cutting

Product Highlights

This tap is designed to create precise internal threads in materials like steel, stainless steel, tool steel, die steel, and nickel alloys.

Product Information

Standard Information

• Series: HY-PRO 280
• Material: HSS-E

Technical Specifications

• Thread Size: #8-32
• Chamfer Type: 3.5P-4.5P Plug
• Thread Limit: H2
• Thread Length: 0.374 inches
• Finish/Coating: Steam Oxide
• Overall Length: 2.12 inches
• Shank Diameter: 0.167 inches
• Thread Standard: UNC
• Number of Flutes: 3
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Steel, Stainless Steel, Tool Steel, Die Steel, Nickel Alloys
• Through Coolant: No
