Osg 2729400 Round Die 10-24 Unc 1 in Od Hss Adjustable

Product Description

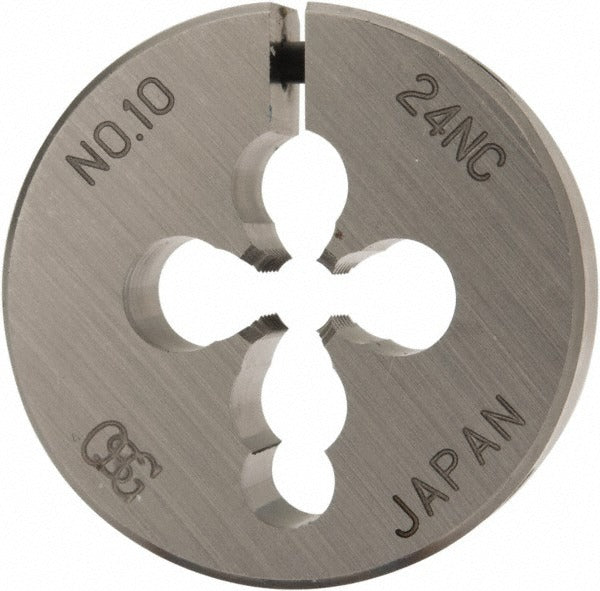

The OSG 2729400 is a round threading die designed to cut external 10-24 UNC threads on ferrous workpieces including iron and steel. The die measures 1 inch in outside diameter and 3/8 inch in thickness, and is manufactured from high-speed steel (HSS) for durability under repeated use. An adjustable design allows the operator to fine-tune thread fit and compensate for die wear over time. Right-hand thread direction follows the standard for the vast majority of fastener applications. Machinists, tool-and-die workers, and maintenance professionals use this die for threading bolts, studs, and rod stock.

This die is suited for threading 10-24 UNC external threads in production and maintenance environments. The 10-24 thread size is a common unified coarse thread used across light-duty machine fastener applications in iron and steel components. At 1 inch OD, the die fits standard 1-inch round die stocks and holders. It is appropriate for both bench work and light machine use where manual or low-speed thread cutting is required.

Key Features

• 10-24 UNC thread size for common machine fastener applications
• 1 inch outside diameter fits standard round die stocks
• 3/8 inch thickness provides stable engagement during cutting
• High-speed steel construction for extended service life on iron and steel
• Adjustable design allows thread fit fine-tuning and compensation for wear
• Right-hand thread direction per UNC standard

Compatibility

Designed for cutting external 10-24 UNC right-hand threads on iron and steel workpieces. Fits standard 1-inch OD round die stocks and die holders.

Installation Notes

This die is installed and used by machinists or maintenance technicians using a standard round die stock or holder. Secure the die firmly in the holder before use and apply cutting oil to the workpiece to reduce heat and improve thread quality. Advance the die in short increments and back off periodically to clear chips. Follow applicable shop safety practices when operating cutting tools on metal stock.
