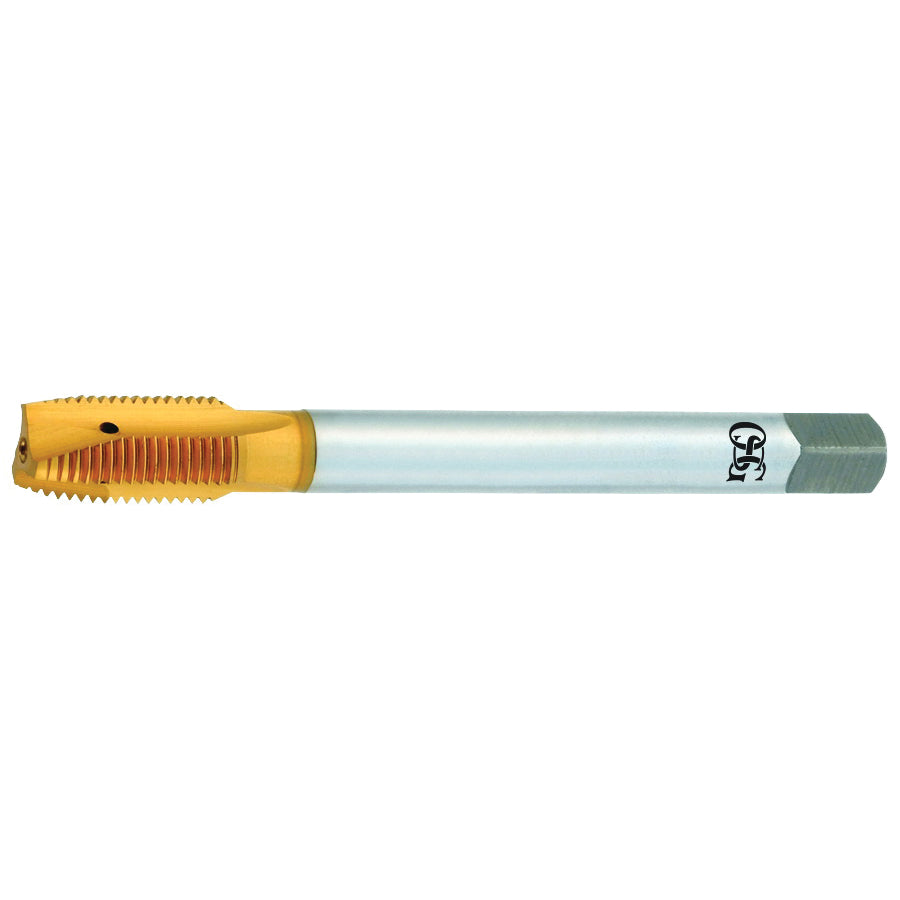

OSG 2630805 HY-PRO 260 Spiral Point Tap Right Hand Cutting 5/16-18 Thread

Product Description

The OSG 2630805 is a HY-PRO 260 Spiral Point Tap designed for right hand cutting. This tool features a size of five sixteenths inches and a thread pattern of five sixteenths-18. It has a chamfer type of three point five to four point five plug and offers three flutes for efficient cutting. Made from HSS-E material and coated with titanium nitride, the tap provides durability and improved wear resistance.

• HSSE material for increased wear resistance
• Spiral point design for through hole applications
• TiN coating enhances lifespan and performance

Product Highlights

This spiral point tap is versatile and well-suited for various materials including alloy steel, aluminum, and cast iron. Its design promotes excellent chip evacuation and heat control, which can prolong the tool's lifespan.

Product Information

Standard Information

• Brand: OSG
• Country of Origin: JP

Technical Specifications

• Size: 5/16 in
• Series: 260
• Material: HSS-E
• Thread Size: 5/16-18
• Chamfer Type: 3.5P-4.5P Plug
• Class of Fit: 2B
• Shank Length: 2-5/32 in
• Thread Length: 0.665 in
• Finish/Coating: TiN Coated
• Overall Length: 3.54 in
• Shank Diameter: 0.317 in
• Thread Standard: UNC
• Number of Flutes: 3
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Alloy Steel, Aluminum, Cast Aluminum, Cast Iron, Die Steel, Hardened Steel, Low/Medium/High Carbon Steel and Stainless Steel
• Through Coolant: Yes
