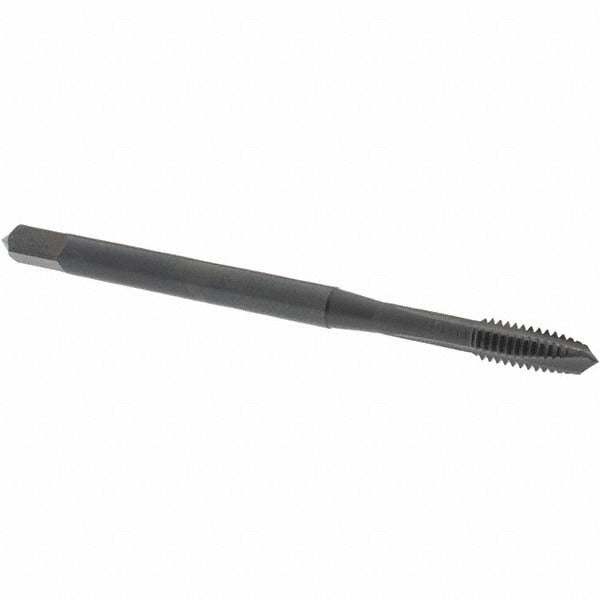

Osg 2517801 Spiral Point Tap 8-32 Unc 3 Flute Hss

Product Description

The OSG 2517801 is a spiral point tap designed for threading 8-32 UNC internal threads in production and maintenance machining applications. Built from vanadium high-speed steel (HSS-E) with a steam oxide coating, it provides improved lubricity and corrosion resistance compared to uncoated taps. The plug chamfer distributes cutting load across the leading threads, making it well suited for through-hole tapping. With a 2B class of fit and H2 thread limit, it produces threads within standard commercial tolerance for most fastener applications. Overall length is 2.48 inches and thread length is 0.75 inches, keeping it compact for close-quarter work.

This tap is intended for use in a wide range of metalworking environments, from job shops and maintenance departments to production lines. It is rated for use in aluminum, low-carbon steel, medium-carbon steel, high-carbon steel, alloy steel, die steel, stainless steel, and cast iron. The spiral point geometry pushes chips forward ahead of the tap, making it most effective in through-hole applications where chip evacuation is not obstructed. It is a right-hand tap, driven with standard right-hand rotation using a tap wrench, tapping head, or CNC machine spindle.

Key Features

• 8-32 UNC thread form with H2 thread limit and 2B class of fit for standard commercial tolerance
• Vanadium high-speed steel (HSS-E) construction for improved wear resistance over standard HSS
• Steam oxide coating reduces friction and improves chip flow
• Plug chamfer distributes cutting force across leading threads for smooth entry
• 3-flute spiral point geometry pushes chips forward — optimized for through-hole tapping
• Right-hand thread direction; no coolant-through requirement

Compatibility

Designed as an OEM-style threading tool for through-hole 8-32 UNC tapping operations across a broad range of metals including aluminum, carbon steels, alloy steels, stainless steel, die steel, and cast iron.

Installation Notes

This tap should be installed by a machinist or qualified metalworking technician. Secure the workpiece before tapping and ensure the spindle or tap wrench is properly aligned to avoid tap breakage from angular misalignment. Use appropriate cutting fluid for the material being tapped, even though coolant-through is not required. When tapping by hand, back off periodically to break chips and clear the flutes.
