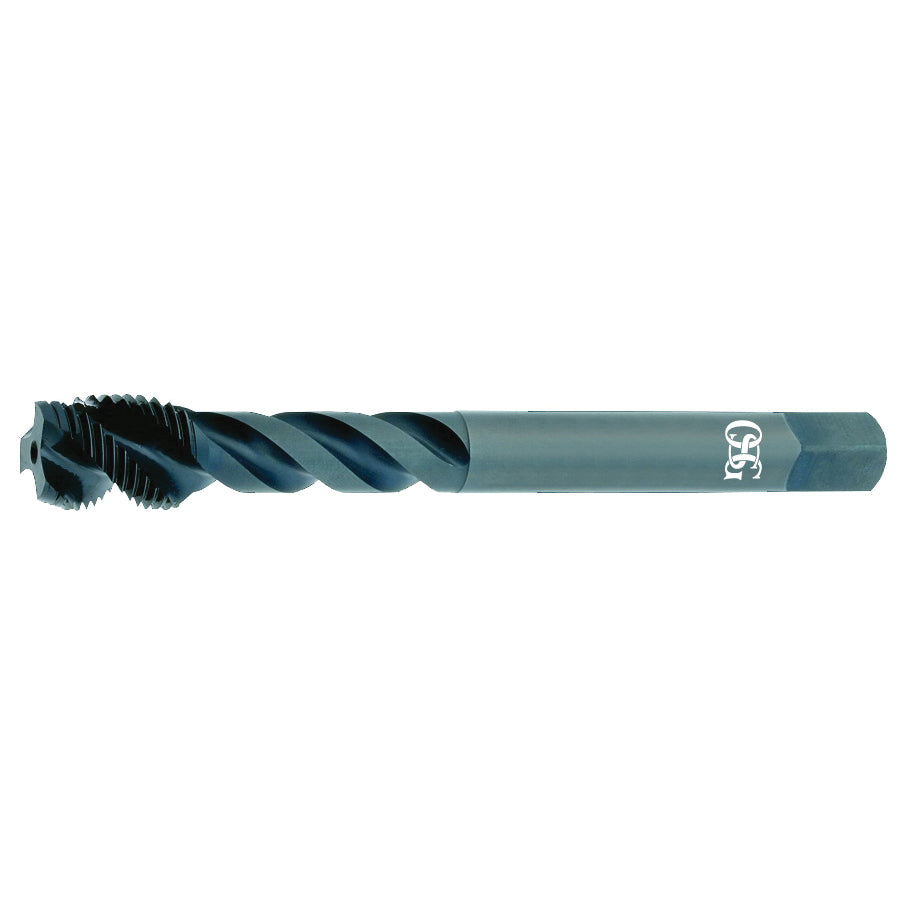

OSG 2293401 HY-PRO High Performance Premium Spiral Flute Tap Right Hand Cutting M20-1.5 Thread 2.5P-3P Modified Bottoming Chamfer

Product Description

The OSG 2293401 is a high performance premium spiral flute tap. It is designed for right hand cutting. This tap features an M20-1.5 thread with a 2.5P-3P modified bottoming chamfer. It has four flutes and is made from HSSE material with a steam oxide finish.

• M20-1.5 thread size
• Right hand cutting direction
• Designed for multiple material applications

Product Highlights

This tool provides precise threading in various materials including alloy steel, cast iron, and hardened steel.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG

Technical Specifications

• Series: 229
• Material: HSSE
• Thread Size: M20-1.5
• Chamfer Type: 2.5P-3P Modified Bottoming
• Class of Fit: 6H
• Shank Length: 2-15/32 inches
• Thread Length: 0.787 inches
• Finish/Coating: Steam Oxide
• Overall Length: 4.92 inches
• Shank Diameter: 0.652 inches
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Measurement System: Metric
• Material Application: Alloy Steel, Cast Iron, Die Steel, Hardened Steel, Low/Medium/High Carbon Steel, Stainless Steel
• Through Coolant: No
