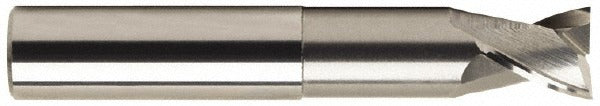

Osg 20241400 Corner Radius End Mill 3/4 in 2 Flute Carbide

Product Description

The OSG 20241400 is a solid carbide corner radius end mill designed for material removal in non-ferrous metal applications. It features a 3/4 inch cutting diameter with a 0.06 inch corner radius and a 2-flute, right-hand helical geometry optimized for roughing operations. The extended reach design provides a 2.5 inch reach length and a 6 inch overall length, making it well suited for deeper pocket and profile work where standard-length tooling cannot reach. Center-cutting capability allows direct plunge entry. This tool is intended for use with a standard toolholder and is installed and operated by machinists in CNC milling and manual milling environments.

This end mill is primarily applied to non-ferrous metals such as aluminum, brass, copper, and similar materials where efficient chip evacuation and surface finish matter. The coarse pitch and 2-flute configuration promote large chip clearance, reducing the risk of recutting in gummy or sticky materials. The long-reach geometry makes it a practical choice for deep cavity milling, stepped profiles, and contoured walls where tool clearance is critical. The 3/4 inch straight cylindrical shank fits standard toolholders accepting that shank diameter.

Key Features

• 3/4 inch cutting diameter with 0.06 inch corner radius for controlled edge blending
• Solid carbide construction for rigidity and wear resistance in non-ferrous applications
• Extended reach at 2.5 inches with 6 inch overall length for deep-pocket access
• Center-cutting design permits direct plunge milling without pre-drilling
• Right-hand cut, right-hand flute helix with coarse pitch for efficient chip removal
• Bright/uncoated finish suitable for non-ferrous materials where coating adhesion is unnecessary

Compatibility

Designed for use with standard toolholders accepting a 3/4 inch straight cylindrical shank. Intended for non-ferrous metal workpiece materials per OSG Series 2024 specifications.

Installation Notes

Installation should be performed by a qualified machinist following the toolholder manufacturer torque and runout specifications. Ensure the shank is fully seated and properly secured in the toolholder before operation. Verify spindle direction is set to right-hand rotation before engaging the cut. Inspect the cutting edges for chips or damage before each use, as solid carbide is brittle and sensitive to impact loading.
