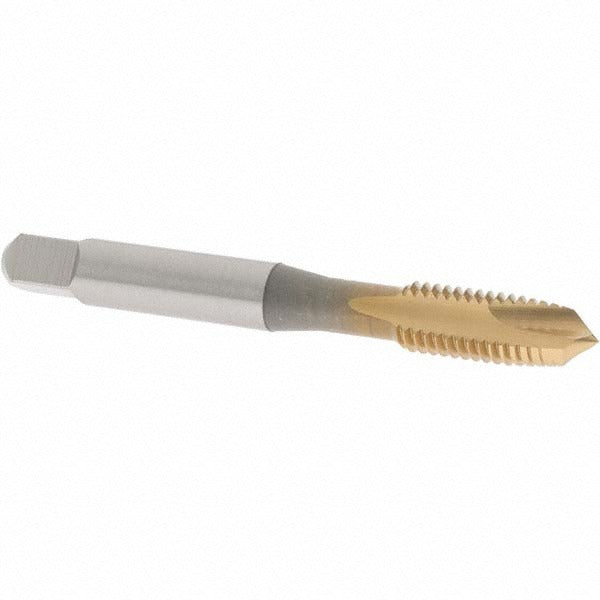

Osg 1981305 Spiral Point Tap M8x1.25 2 Flute Plug 6H Tin

Product Description

The OSG 1981305 is a spiral point tap designed for threading M8x1.25 metric coarse holes in production and maintenance machining environments. It features a plug chamfer style that guides the tap into the cut gradually, making it well suited for through-hole tapping operations. Constructed from high-speed steel with a titanium nitride (TiN) coating, it delivers improved wear resistance and extended tool life compared to uncoated HSS taps. The 2-flute spiral point geometry pushes chips forward ahead of the cutting edge, reducing chip packing in through-hole applications. Machinists and tool-and-die technicians install this tap by hand or with CNC and manual tapping equipment.

This tap is intended for through-hole tapping across a broad range of materials including aluminum, cast aluminum, cast iron, low-carbon steel, medium-carbon steel, high-carbon steel, and hardened steel. The 6H class of fit produces standard metric tolerance threads suitable for most general-purpose fastener assemblies. With a thread length of 1.125 inches (18 mm) and an overall length of approximately 2.72 inches (69.1 mm), it fits standard tap holders and collet chucks sized for the 8.772 mm shank diameter.

Key Features

• M8x1.25 metric coarse thread form with 6H class of fit for standard tolerance threading
• Plug chamfer for through-hole tapping applications
• 2-flute spiral point geometry pushes chips forward, reducing chip packing
• High-speed steel construction with TiN coating for enhanced wear resistance and longer tool life
• Right-hand cut, non-coolant-through design compatible with standard tapping setups
• D5 thread limit for consistent dimensional accuracy across production runs

Compatibility

Designed for use in through-hole tapping of aluminum, cast aluminum, cast iron, low-carbon steel, medium-carbon steel, high-carbon steel, and hardened steel workpieces requiring an M8x1.25 metric coarse thread with a 6H class of fit.

Installation Notes

This tap is installed by machinists using CNC machining centers, drill presses with tapping attachments, or manual tap wrenches. Ensure the spindle is powered down and the workpiece is securely fixtured before tool changes. Apply an appropriate cutting fluid or tapping compound for the workpiece material to reduce heat buildup and extend tap life. Follow applicable shop safety procedures and machine manufacturer guidelines when setting spindle speed and feed rate.
