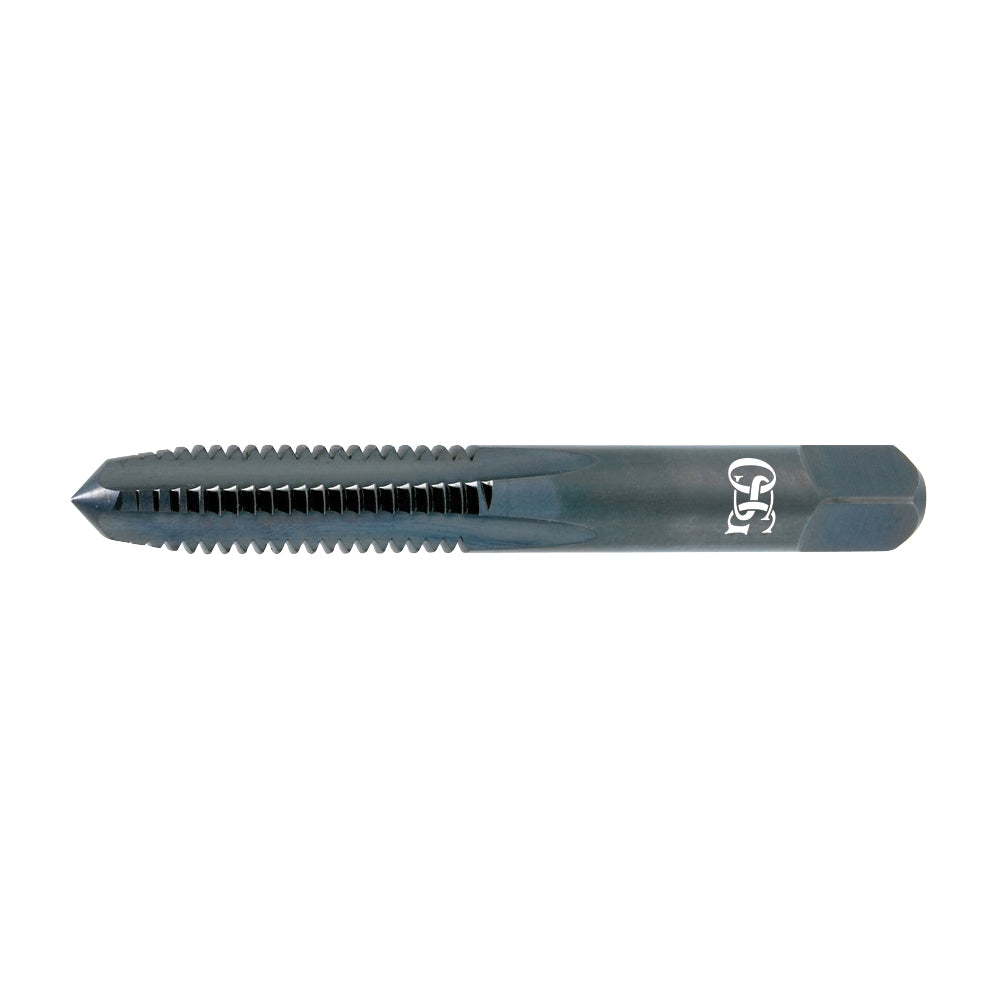

OSG 1971401 141 General Purpose Straight Flute Tap Right Hand Cutting M8-1.25 Thread D5 Thread Limit

Product Description

The OSG Straight Flute Tap, MPN 1971401, is designed for general purpose threading tasks. It features a metric coarse thread size of M8-1.25, making it suitable for a variety of applications. This tap has a steam oxide finish, which enhances its wear resistance and makes it ideal for diverse materials, including aluminum, cast iron, and carbon steel.

• High-speed steel (HSS) construction for durability
• Right-hand cutting for straightforward operation
• Four flute design for maximum chip removal

Product Highlights

This general purpose tap is versatile and ideal for both blind and through hole applications, providing effective performance in threading tasks.

Product Information

Standard Information

• Brand: OSG
• Country of Origin: BR

Technical Specifications

• Type: General Purpose
• Series: 141
• Material: HSS
• Thread Size: M8-1.25
• Chamfer Type: 1.5P-2P Bottoming
• Shank Length: 35 mm
• Thread Limit: D5
• Thread Length: 18 mm
• Overall Length: 69 mm
• Shank Diameter: 8.07 mm
• Thread Standard: Coarse
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Measurement System: Metric
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metal
• Through Coolant (Yes/No): No
