Osg 1760008 Spiral Point Tap 8-32 Unc 3 Flute Plug Ticn

Product Description

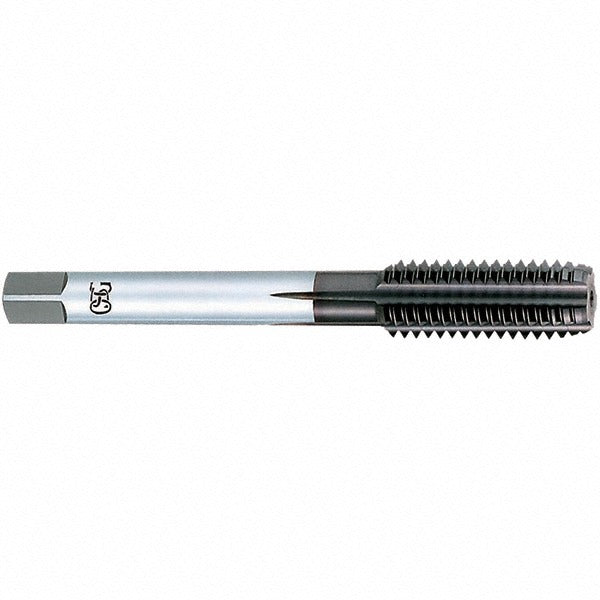

The OSG 1760008 is a spiral point plug tap designed for threading 8-32 UNC right-hand threads in demanding materials. Built from powdered metal and finished with a TiCN coating, this tap handles hardened steel, stainless steel, high-nickel alloys, titanium, alloy steel, and die steel. The spiral point geometry pushes chips forward ahead of the tap, making it well suited for through-hole applications where chip evacuation matters. With a thread limit of H5 and an overall length of 2.126 inches, it fits standard tap holders used in machine tapping operations. Sold individually.

This tap is intended for machine tapping operations in production and job shop environments where tight tolerances and difficult workpiece materials are common. The 3-flute, plug chamfer configuration provides a gradual lead-in and stable cutting action. Typical applications include threading through holes in aerospace components, tool and die work, and general metalworking where stainless steel or hardened alloys are machined. The TiCN coating reduces friction and extends tool life compared to uncoated or TiN-only alternatives in high-strength materials.

Key Features

• Spiral point geometry pushes chips forward for reliable through-hole chip evacuation
• TiCN coating improves wear resistance and reduces heat buildup in tough alloys
• Powdered metal substrate provides consistent hardness and edge retention
• H5 thread limit for controlled oversize fit suitable for plated or tight-tolerance holes
• Right-hand, plug chamfer entry for gradual thread engagement in machine tapping
• Rated for hardened steel, stainless steel, high-nickel alloy, titanium, alloy steel, and die steel

Compatibility

Designed for machine tapping of 8-32 UNC through holes in hardened steel, stainless steel, high-nickel alloy, titanium, alloy steel, and die steel workpieces. No coolant-through capability; suitable for flood or external coolant delivery setups.

Installation Notes

Install in a rigid or floating tap holder sized for the 0.168-inch shank diameter. Ensure the spindle is stopped and the machine is in a safe state before loading or unloading the tap. Use appropriate cutting fluid for the workpiece material, particularly when tapping stainless or high-nickel alloys, to manage heat and reduce galling. Follow shop SOP and machine manufacturer guidelines for spindle speed and feed rate selection.
