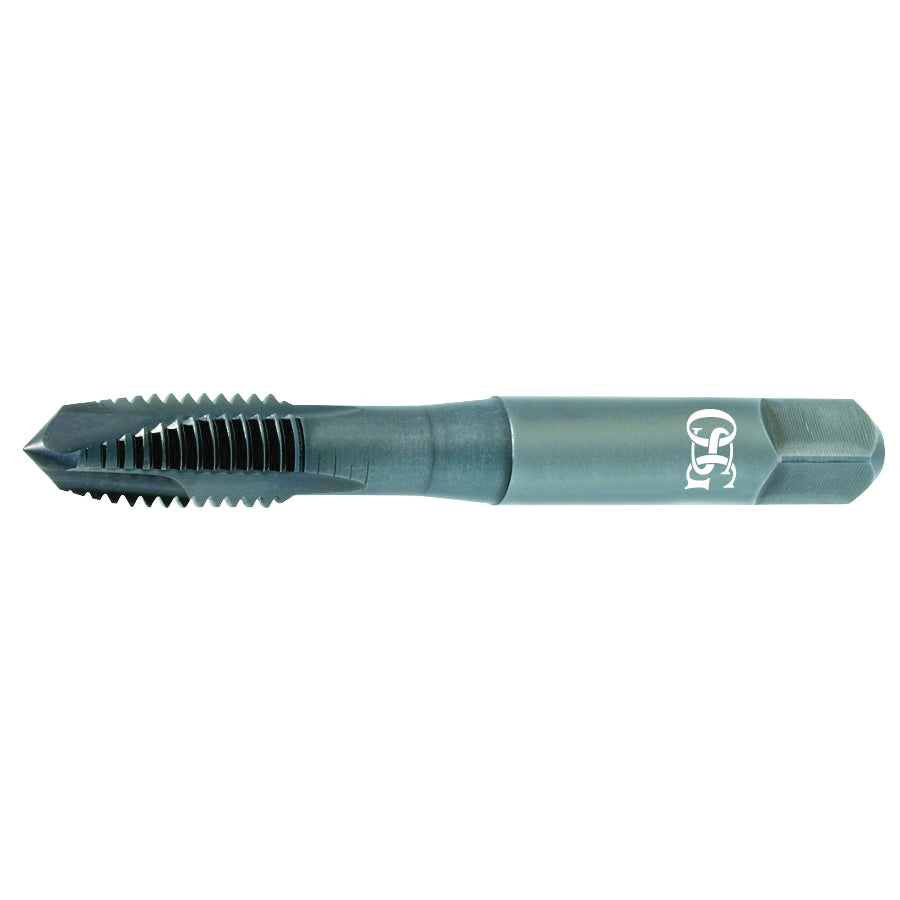

OSG 1758401 EXO 312 High Performance Spiral Point Tap 1/2-13 Thread H3 Thread Limit

Product Description

OSG EXO 1758401 is a high-performance spiral point tap designed for right-hand cutting applications. This tool features a size of one-half inch with a thread count of thirteen. It is made to provide reliable performance in tough materials such as alloy steel, hardened steel, and stainless steel.

• Premium powdered metal VC-10 substrate
• Three flutes for effective chip removal
• Steam oxide finish for enhanced durability

Product Highlights

This tap is ideal for applications requiring precision and strength, making it suitable for machining tasks in various materials.

Product Information

Standard Information

• Category: Cutting Tools & Metalworking, Threading, Taps, Spiral Point Taps
• Country of Origin: BR

Technical Specifications

• Size: 1/2 in
• Type: High Performance
• Series: 312
• Material: VC-10
• Thread Size: 1/2-13
• Chamfer Type: 4.5P-5.5P Plug
• Class of Fit: JIS 2
• Shank Length: 2 in
• Thread Limit: H3
• Thread Length: 0.96 in
• Finish/Coating: Steam Oxide
• Overall Length: 3.37 in
• Shank Diameter: 0.367 in
• Thread Standard: UNC
• Number of Flutes: 3
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Alloy Steel, Die Steel, Hardened Steel, Inconel Nickel Alloy, Stainless Steel and Titanium
• Through Coolant: No
