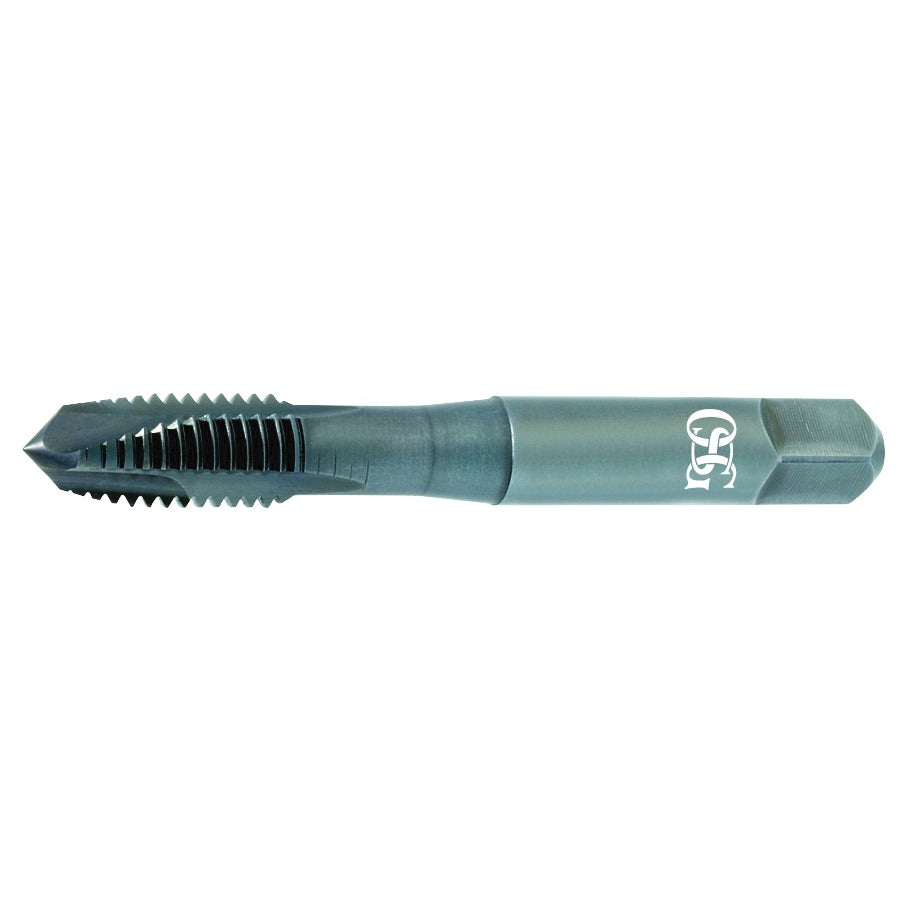

OSG 1757601 EXO 1757601 312 High Performance Spiral Point Tap Right Hand Cutting 1/4-20 Thread H3 Thread Limit

Product Description

The OSG EXO 1757601 is a high-performance spiral point tap designed for precision threading. It features a 1/4-20 thread size, making it suitable for various applications in metalworking. This tap is constructed from durable VC-10 material and has a right-hand cutting design.

• High-performance spiral point tap
• Designed for through hole applications
• Compatible with a range of materials

Product Highlights

The OSG EXO 1757601 tap is ideal for users needing efficient threading in alloy steel, stainless steel, and other hard materials.

Product Information

Standard Information

• Manufacturer: OSG
• Country of Origin: BR

Technical Specifications

• Size: 1/4 in
• Type: High Performance
• Series: 312
• Material: VC-10
• Thread Size: 1/4-20
• Chamfer Type: 4.5P-5.5P Plug
• Class of Fit: H3
• Shank Length: 1-15/32 in
• Thread Limit: H3
• Thread Length: 0.602 in
• Finish/Coating: Steam Oxide
• Overall Length: 2-1/2 in
• Shank Diameter: 0.255 in
• Thread Standard: UNC
• Number of Flutes: 3
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Alloy Steel, Die Steel, Hardened Steel, Inconel Nickel Alloy, Stainless Steel and Titanium
• Through Coolant: No
