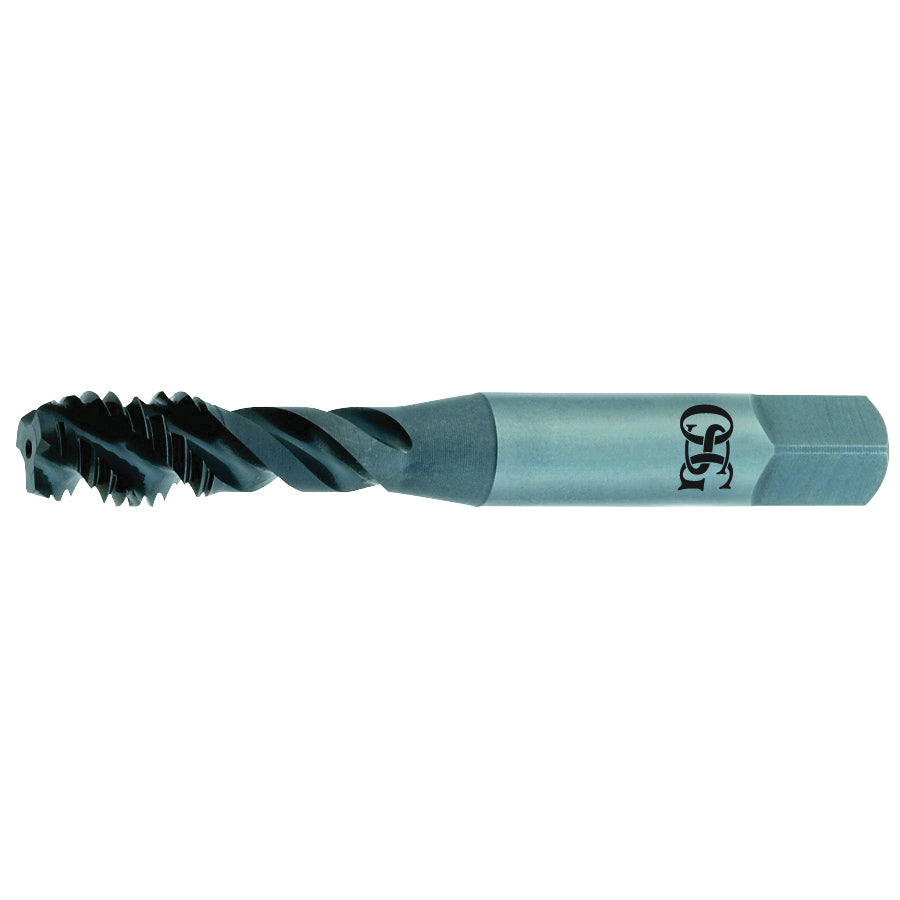

OSG 1756001 EXO 1756001 343 High Performance Premium Spiral Flute Tap Right Hand Cutting M6-1 Thread D5 Thread Limit

Product Description

The OSG 1756001 EXO Spiral Flute Tap is designed for high performance in threading applications. This tap features a metric size M6-1 with a D5 thread limit and a modified bottoming chamfer. It is ideal for use on both low and high carbon steels as well as stainless steel materials.

• Right hand cutting design for efficient operation.
• Constructed with HSSE material for enhanced wear resistance.
• Steam oxide finish for improved lubricity.

Product Highlights

This tap enhances chip evacuation and reduces cutting forces, allowing for a smooth tapping experience.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG

Technical Specifications

• Size: M6
• Type: High Performance Premium
• Series: 343
• Material: HSSE
• Thread Size: M6-1
• Chamfer Type: 2.5P-3P Modified Bottoming
• Shank Length: 38 mm
• Thread Limit: D5
• Thread Length: 8 mm
• Overall Length: 63 mm
• Shank Diameter: 6.47 mm
• Number of Flutes: 3
• Cutting Direction: Right Hand
• Measurement System: Metric
• Material Application: Low/Medium/High Carbon Steel and Stainless Steel
• Through Coolant: No
