OSG 17548511 OSG 1/4 10XD XL HELIOS DRILL 87x140 1/4sh HSCO/120/WXL

Product Description

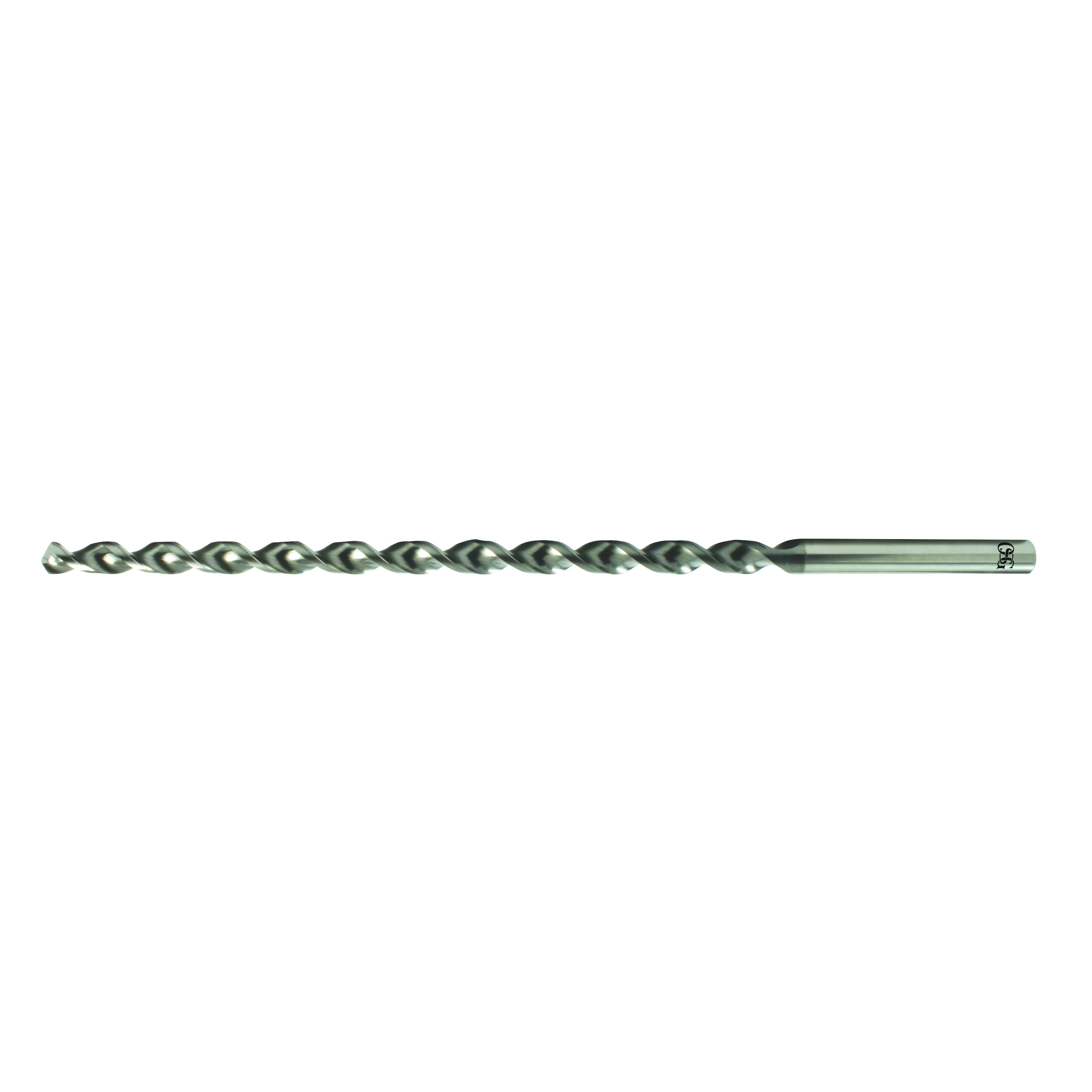

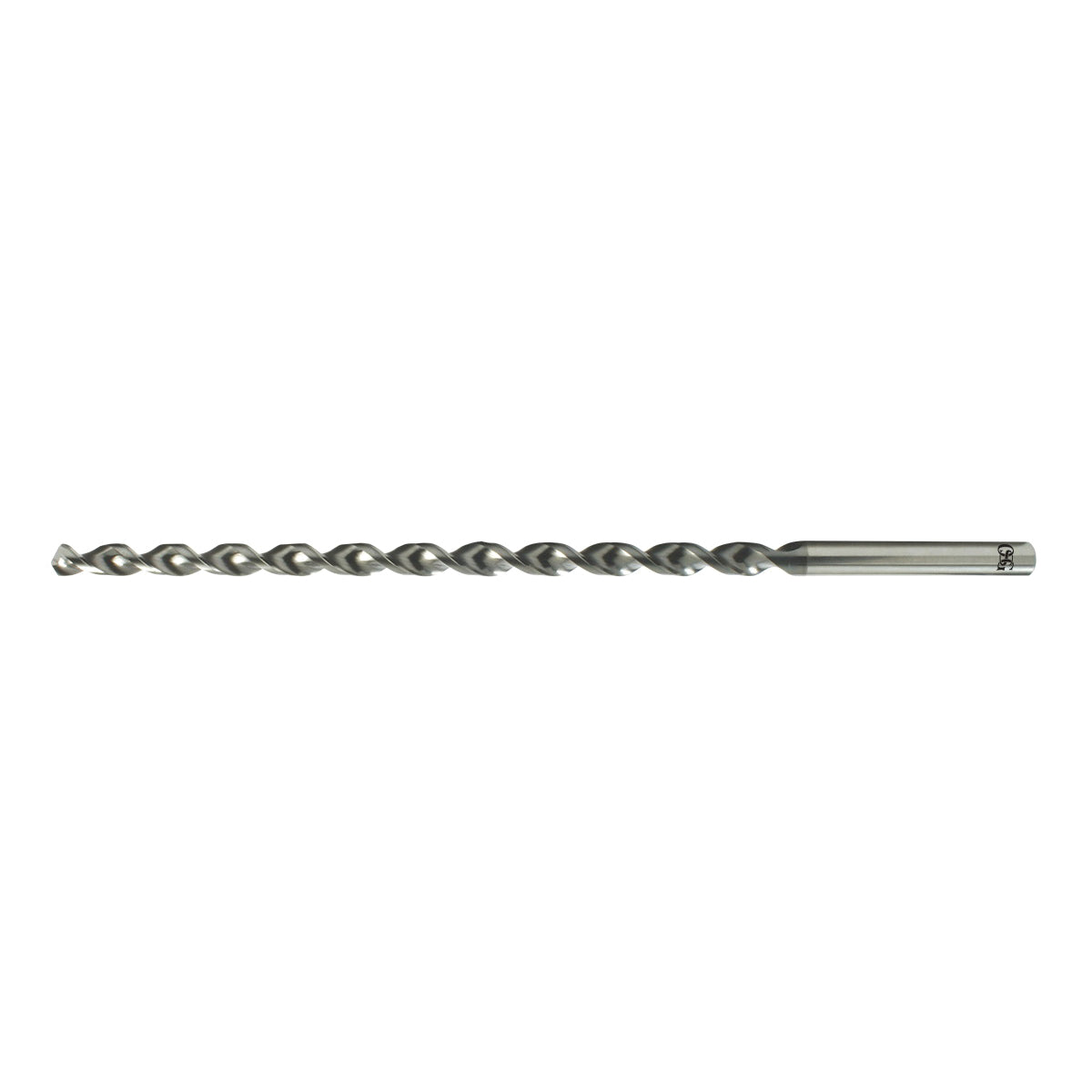

OSG 1/4 10XD XL HELIOS DRILL 87x140 1/4sh HSCO/120/WXL is a high-performance tap length drill designed for efficient drilling. The MPN for this product is 17548511. This drill features a cobalt material composition and comes with a diameter of 1/4 inches. It has a flute length of eighty-seven millimeters and an overall length of one hundred forty millimeters.

• Patented low resistance web thinning reduces penetration force.
• WXL nano coating technology enhances wear resistance.
• Designed for various materials including alloy steel, aluminum, carbon steel, stainless steel, and titanium.

Product Highlights

This drill is specifically crafted for deep hole drilling without the need for coolant and significantly enhances chip removal efficiency.

Product Information

Standard Information

• Brand: OSG
• Material: Cobalt

Technical Specifications

• Diameter: 1/4 inches (6.350 mm)
• Shank Diameter: 1/4 inches (6.350 mm)
• Flute Length: 87.000 mm
• Overall Length: 140.000 mm

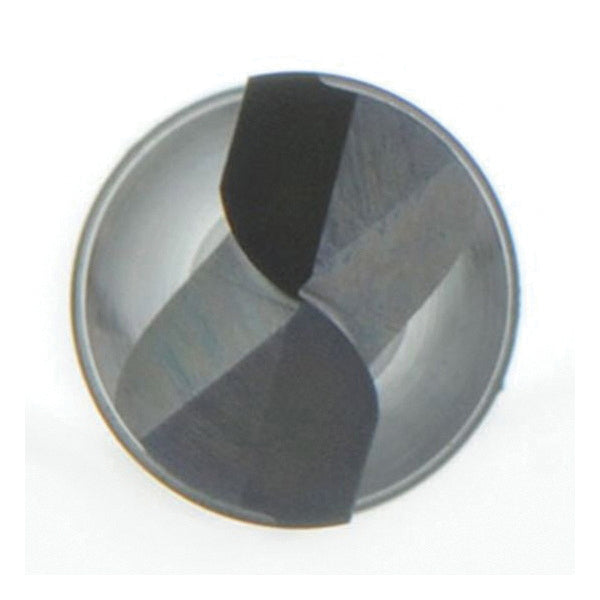

• Point Type: R-Thinning
• Cutting Edge Material: HSS-CO
• Number of Flutes: 2
• Cutting Direction: Right Hand
