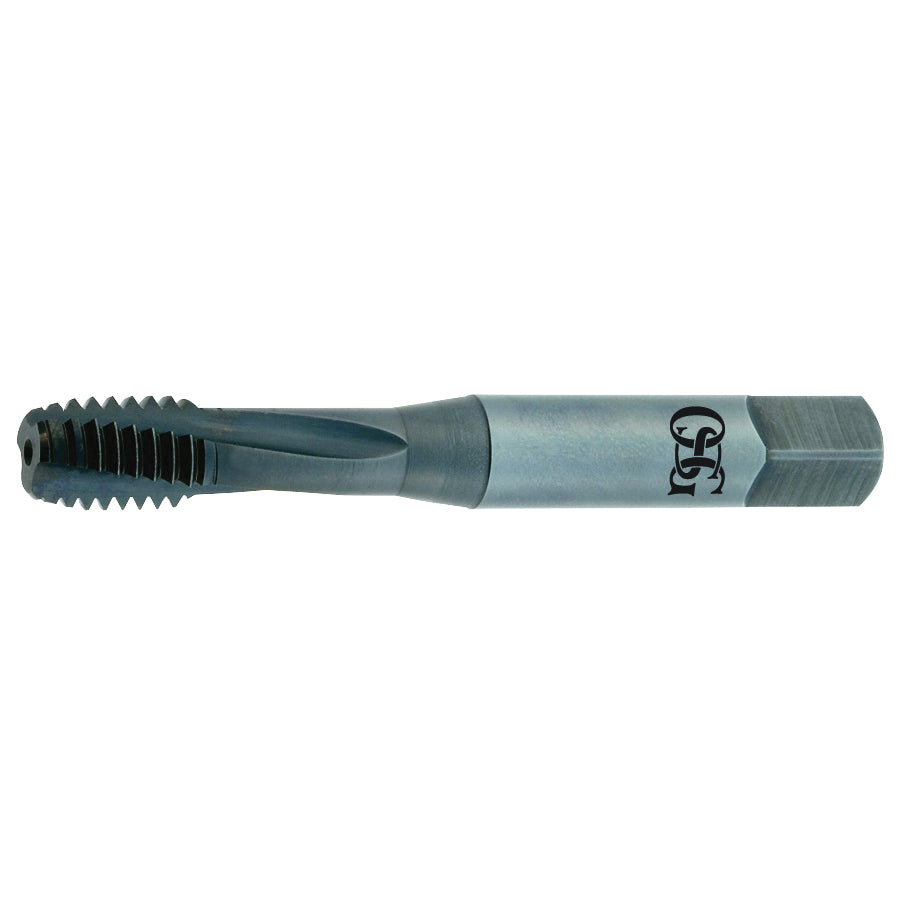

OSG 1753801 EXO 313 High Performance Premium Spiral Flute Tap Right Hand Cutting 3/4-10

Product Description

The OSG 1753801 EXO Spiral Flute Tap is designed for high-performance threading in various materials. It features a right-hand cutting direction and is suitable for 3/4-10 threads. With a thread length of 0.799 inches and an overall length of four and one-quarter inches, this tap is crafted from VC-10 material, making it suitable for use on alloy steel, die steel, hardened steel, Inconel nickel alloy, stainless steel, and titanium.

• Made from premium powdered metal VC-10 for enhanced durability
• Steam oxide surface treatment for improved lubricity
• Four flutes for efficient chip removal

Product Highlights

The EXO Spiral Flute Tap features advanced coating for longer tool life and is designed for precision performance in tapping applications.

Product Information

Standard Information

• Brand: OSG
• Part Number: OSG1753801

Technical Specifications

• Type: High Performance Premium
• Thread Size: 3/4-10
• Thread Length: 0.799 inches
• Overall Length: 4-1/4 inches
• Shank Diameter: 0.59 inches
• Shank Length: 1-13/16 inches
• Number of Flutes: 4
• Chamfer Type: 2.5P-3P Modified Bottoming
• Thread Limit: H3
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Alloy Steel, Die Steel, Hardened Steel, Inconel Nickel Alloy, Stainless Steel, Titanium
• Through Coolant: No
• Finish/Coating: Steam Oxide
