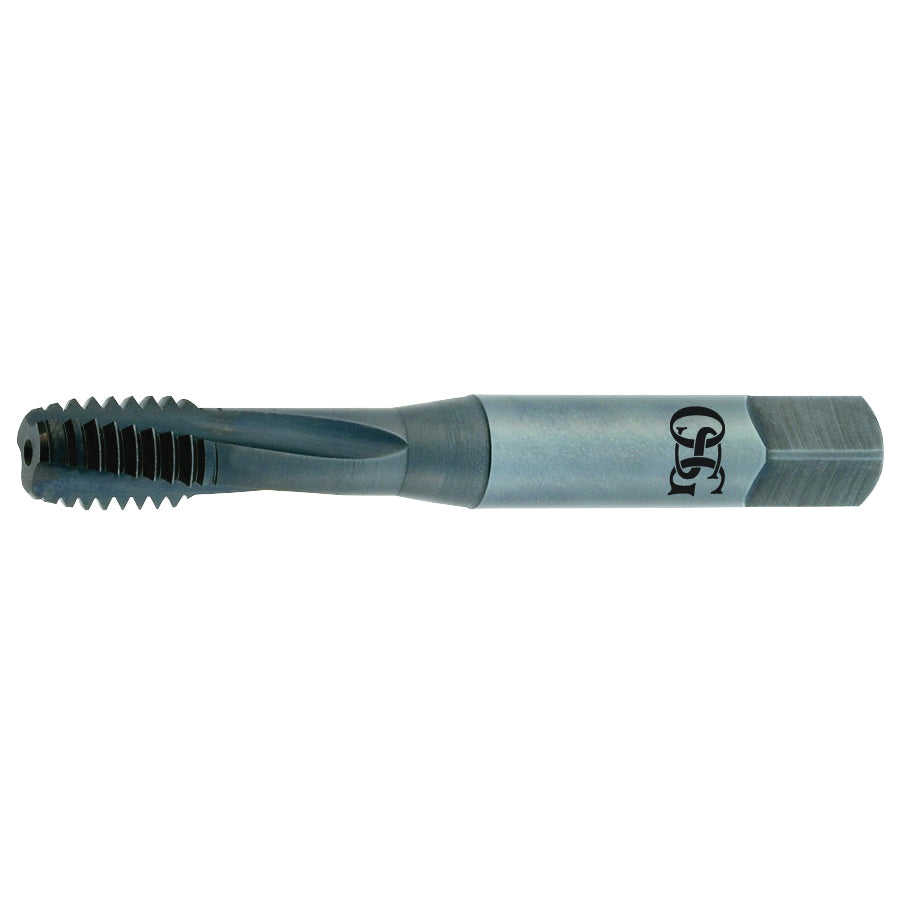

OSG 1753501 EXO 313 High Performance Premium Spiral Flute Tap Right Hand Cutting 1/2-20 Thread H3 Thread Limit

Product Description

The OSG 1753501 is an EXO Spiral Flute Tap designed for high performance and durability. This premium tap features right-hand cutting and a thread size of 1/2-20 UNF. Its design includes a 2.5P-3P modified bottoming chamfer and three flutes, making it suitable for a variety of materials including alloy steel, stainless steel, and titanium.

• Right-hand cutting for easy operation
• Steam oxide finish for enhanced lubrication
• Compatible with multiple materials, including hardened steel and Inconel

Product Highlights

This tap stands out for its exceptional hardness and wear resistance, enabling longer life and improved performance in tough applications.

Product Information

Standard Information

• Brand: OSG
• Country of Origin: Mexico

Technical Specifications

• Size: 1/2 inches
• Material: VC-10
• Series: 313
• Thread Size: 1/2-20
• Chamfer Type: 2.5P-3P Modified Bottoming
• Shank Length: 1-13/32 inches
• Thread Limit: H3
• Thread Length: 0.614 inches
• Finish/Coating: Steam Oxide
• Overall Length: 3.37 inches
• Shank Diameter: 0.367 inches
• Thread Standard: UNF
• Number of Flutes: 3
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Alloy Steel, Die Steel, Hardened Steel, Inconel Nickel Alloy, Stainless Steel, Titanium
• Through Coolant: No
