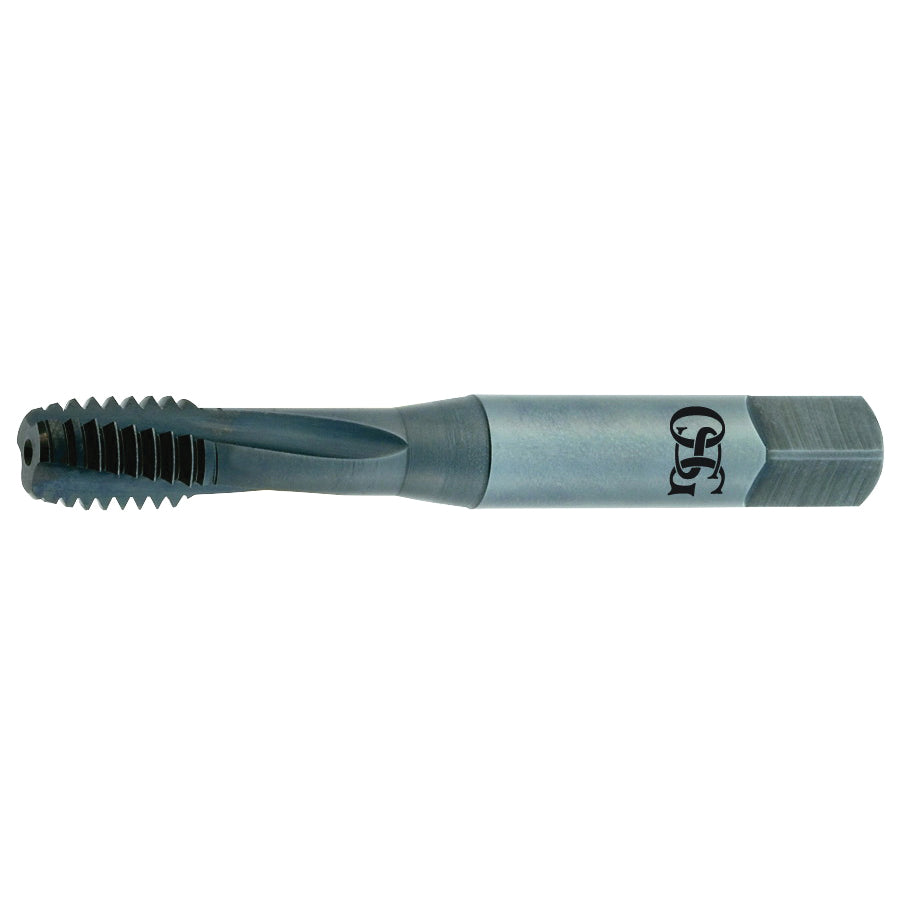

OSG 1752701 EXO 1752701 313 High Performance Premium Spiral Flute Tap Right Hand Cutting 1/4-28 Thread H3 Thread Limit 2.5P-3P Modified Bottoming Chamfer

Product Description

The OSG 1752701 is a high performance premium spiral flute tap suitable for a variety of materials. It features a right-hand cutting design and is ideal for creating threads in soft materials like alloy steel, hardened steel, stainless steel, and titanium.

• Made with premium powdered metal VC-10 substrate for increased hardness.
• Steam oxide finish enhances lubricity and wear resistance.
• Designed with a 2.5P-3P modified bottoming chamfer for better threading.

Product Highlights

This spiral flute tap is effective for threading applications in different alloys. The coating helps extend the tool life and improve performance.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG

Technical Specifications

• Size: 1/4 in
• Type: High Performance Premium
• Series: 313
• Material: VC-10
• Thread Size: 1/4-28
• Chamfer Type: 2.5P-3P Modified Bottoming
• Shank Length: 1-1/2 in
• Thread Limit: H3
• Thread Length: 0.398 in
• Finish/Coating: Steam Oxide
• Overall Length: 2-1/2 in
• Shank Diameter: 0.255 in
• Thread Standard: UNF
• Number of Flutes: 3
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Alloy Steel, Die Steel, Hardened Steel, Inconel Nickel Alloy, Stainless Steel and Titanium
• Through Coolant: No
