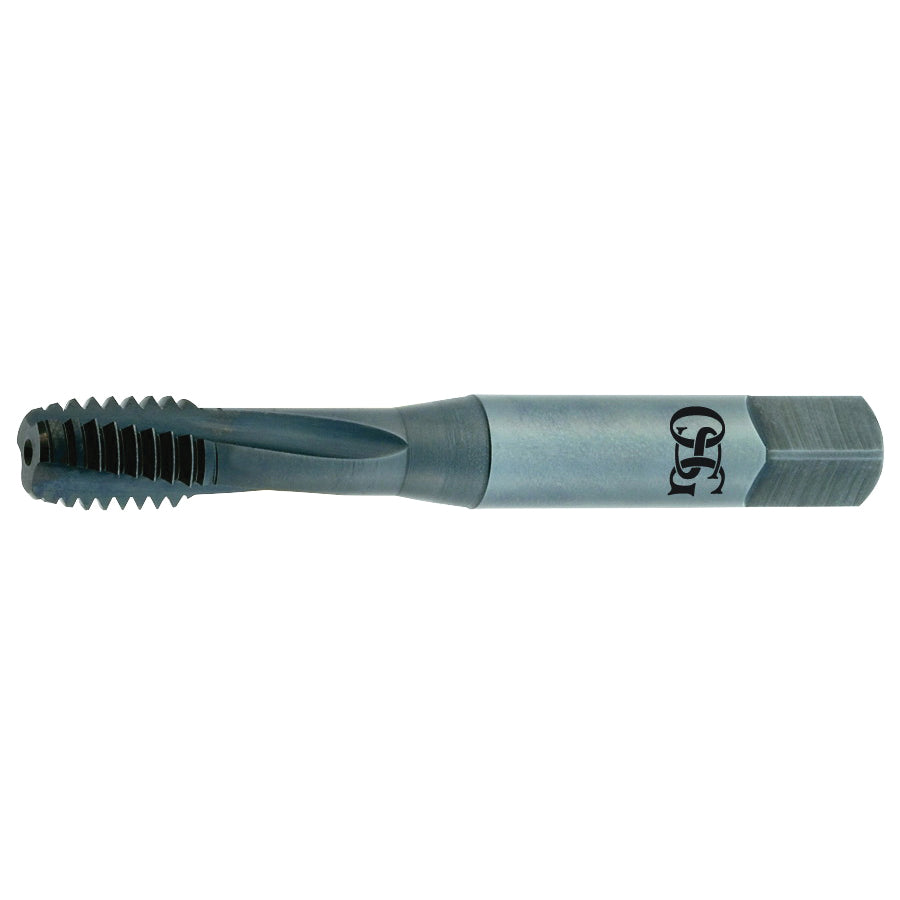

OSG 1752501 EXO 313 High Performance Premium Spiral Flute Tap Right Hand Cutting 10-32 Thread

Product Description

The OSG 1752501 EXO Spiral Flute Tap is engineered for high performance. This tap is suitable for creating threads in various materials including alloy steel and stainless steel. It features a right-hand cutting design with a thread size of ten-thirty-two. The tap's innovative construction includes a three-flute design, providing efficient chip removal during operation.

• Right hand cutting design for versatile applications
• VC-10 substrate for improved tool life
• Steam oxide finish to enhance lubricity

Product Highlights

This product is ideal for threading applications in different metals, enhancing performance and durability.

Product Information

Standard Information

• Brand: OSG
• Country of Origin: MX

Technical Specifications

• Size: #10
• Type: High Performance Premium
• Series: 313
• Material: VC-10
• Thread Size: 10-32
• Chamfer Type: 2.5P-3P Modified Bottoming
• Shank Length: 1-1/2 inches
• Thread Limit: H3
• Thread Length: 0.327 inches
• Finish/Coating: Steam Oxide
• Overall Length: 2.37 inches
• Shank Diameter: 0.194 inches
• Thread Standard: UNF
• Number of Flutes: 3
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Alloy Steel, Die Steel, Hardened Steel, Inconel Nickel Alloy, Stainless Steel and Titanium
• Through Coolant: No
