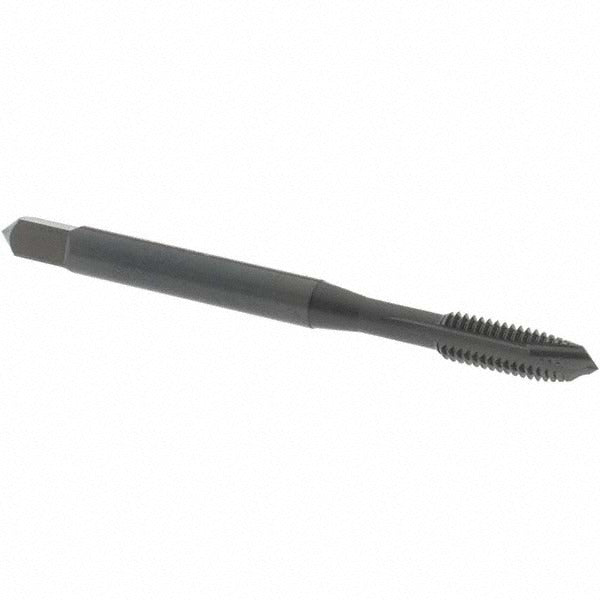

Osg 1736501 Spiral Point Tap 10-32 Unf Plug Hss

Product Description

The OSG 1736501 is a spiral point tap designed for cutting 10-32 UNF internal threads in a range of ferrous materials. It features a plug chamfer for starting in through-hole applications and three flutes that push chips ahead of the cut, keeping the flutes clear during forward feed. The tap is manufactured from vanadium high-speed steel (HSS-E) for improved toughness and wear resistance compared to standard M2 HSS. A steam oxide coating reduces friction and improves lubricity at the cutting edge. Thread limit is H2, producing a 3B class of fit for standard fastener assembly tolerances.

This tap is suited for through-hole threading operations on 10-32 UNF fastener applications in light manufacturing, maintenance, and repair work. Typical material applications include low-carbon steel, medium-carbon steel, hardened steel, and stainless steel. The spiral point geometry makes it the preferred choice over hand taps when using a drill press, CNC machine, or tapping head where chip evacuation forward through the hole is practical. It is not intended for blind-hole work where chips cannot exit ahead of the tap.

Key Features

• Spiral point geometry pushes chips forward, reducing recutting and tap breakage in through-hole operations
• Vanadium high-speed steel (HSS-E) construction provides increased toughness for steel and stainless steel applications
• Steam oxide coating reduces friction and improves chip flow at the cutting interface
• Plug chamfer (3-5 thread lead) allows easy starting in through-hole configurations
• H2 thread limit produces 3B class of fit, compatible with standard 10-32 UNF fastener tolerances
• Right-hand thread direction for use with standard forward-rotating spindles and tapping equipment

Compatibility

Designed for cutting 10-32 UNF threads to a 3B class of fit in through-hole applications across low-carbon steel, medium-carbon steel, hardened steel, and stainless steel workpieces. Not rated for coolant-through use.

Installation Notes

This tap should be installed and operated by a machinist or qualified tradesperson familiar with tapping speeds, feeds, and cutting fluid selection for the workpiece material. Always secure the workpiece and ensure the tap is aligned perpendicular to the drilled hole before engaging the spindle. Use a suitable cutting fluid or tapping compound, particularly when threading stainless steel or hardened materials. Do not reverse the tap under power without confirming the tapping head or program supports a controlled back-out to prevent breakage.
