OSG 1730708 EXO 1730708 300 Spiral Point Tap Right Hand Cutting 1/4-28 Thread

Product Description

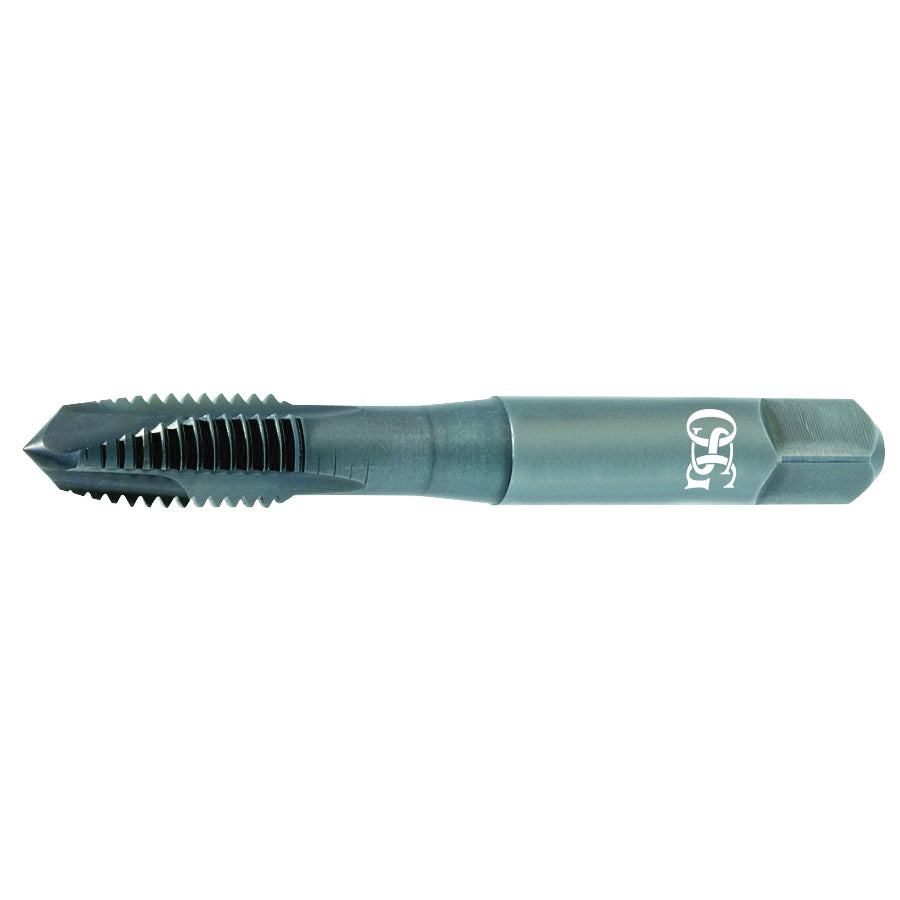

OSG 1730708 EXO Spiral Point Tap is designed for threading applications. It features a right-hand cutting mechanism and a thread size of 1/4-28. The tap is made of HSS-E material which provides strength and durability.

• Three flutes for efficient chip removal
• V-coated finish for enhanced wear resistance
• Suitable for low, medium, and high carbon steel and stainless steel

Product Highlights

This tap excels in tapping performance with a plug chamfer of 3.5P-4.5P, making it effective for creating threads in various materials.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG

Technical Specifications

• Size: 1/4 in
• Series: 300
• Material: HSS-E
• Thread Size: 1/4-28
• Chamfer Type: 3.5P-4.5P Plug
• Class of Fit: 6H
• Shank Length: 1-15/32 in
• Thread Limit: H3
• Thread Length: 0.602 in
• Finish/Coating: V-Coated
• Overall Length: 2-1/2 in
• Shank Diameter: 0.255 in
• Thread Standard: UNF
• Number of Flutes: 3
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Low/Medium/High Carbon Steel and Stainless Steel
• Through Coolant (Yes/No): No
