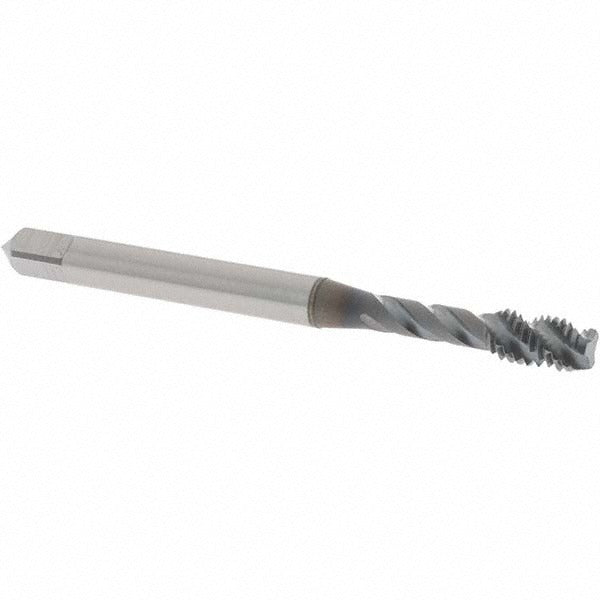

Osg 1724608 Spiral Flute Tap 10-32 Unf Ticn Vanadium Hss

Product Description

The OSG 1724608 is a spiral flute tap designed for cutting 10-32 UNF internal threads in a range of steel materials. It features a 45-degree helix angle with three right-hand spiral flutes that evacuate chips upward out of the hole — making it well suited for blind-hole tapping applications. The tap is manufactured from vanadium high-speed steel and carries a TICN (Titanium Carbonitride) coating for increased surface hardness and lubricity. It is ground to an H2 thread limit with a 3B class of fit, delivering the thread tolerance required for standard fastener assemblies in precision and general machining work.

This tap is intended for use on stainless steel, high-carbon steel, low-carbon steel, and medium-carbon steel. The modified bottoming chamfer allows threading closer to the bottom of blind holes than a plug or taper tap. It is commonly used by machinists, tool-and-die workers, and maintenance technicians on manual mills, CNC machining centers, and drill presses. Overall length is 2-3/8 inches, making it compatible with standard tap holders and quick-change tooling systems used in production and job-shop environments.

Key Features

• 45-degree right-hand helix flutes for efficient chip ejection in blind holes
• TICN coating increases wear resistance and reduces built-up edge on steel materials
• Vanadium high-speed steel substrate for toughness in interrupted cuts and abrasive alloys
• Modified bottoming chamfer for threading close to the bottom of blind holes
• H2 thread limit ground to 3B class of fit for standard fastener thread tolerances
• Right-hand thread direction; no coolant-through requirement

Compatibility

Designed for tapping 10-32 UNF threads in stainless steel, high-carbon steel, low-carbon steel, and medium-carbon steel workpieces. Part of the OSG EXOTAP VA3 series.

Installation Notes

Installation should be performed by a qualified machinist using a calibrated tap holder or floating tap adaptor to maintain axial alignment. Disengage machine power and secure the workpiece before tool changes. Apply a cutting fluid appropriate for the workpiece material — particularly important when tapping stainless steel to prevent galling. Inspect the tap for chipping or wear before each use; a damaged tap can produce out-of-tolerance threads or break off in the workpiece.
