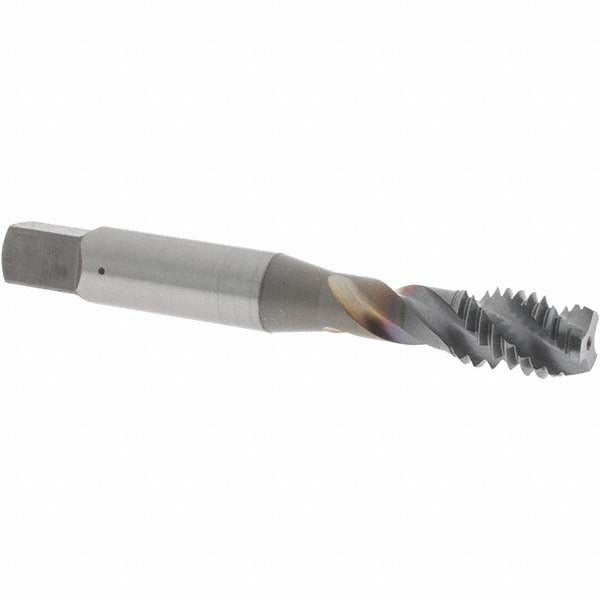

Osg 1723008 Spiral Flute Tap 3/8-16 Unc Modified Bottoming

Product Description

The OSG 1723008 is a spiral flute tap designed for cutting 3/8-16 UNC internal threads in a wide range of ferrous materials. Built from vanadium high-speed steel with a TICN coating, it delivers improved wear resistance and extended tool life compared to uncoated alternatives. The 45-degree helix angle pulls chips up and out of the hole during tapping, making it well suited for blind-hole applications where chip evacuation is critical. The modified bottoming chamfer allows threads to be cut close to the bottom of a blind hole. This tap is used by machinists and maintenance technicians working in metalworking, toolroom, and production environments.

This tap is rated for use in stainless steel, high-carbon steel, low-carbon steel, and medium-carbon steel. The 2B class of fit produces standard commercial-grade thread tolerances appropriate for the majority of fastener and assembly applications. The H5 thread limit designation indicates the tolerance range for the finished thread. At 2-15/16 inches overall length, it is compatible with standard tap handles and CNC tapping heads used in both manual and machine tapping operations.

Key Features

• 45-degree right-hand spiral flute for efficient chip evacuation in blind holes
• TICN coating increases surface hardness and reduces built-up edge on difficult materials
• Modified bottoming chamfer for threading close to the bottom of blind holes
• Vanadium high-speed steel construction for toughness and heat resistance
• H5 thread limit for consistent 2B class of fit tolerances
• Right-hand thread direction compatible with standard tapping equipment

Compatibility

Designed for cutting 3/8-16 UNC right-hand internal threads in stainless steel, high-carbon steel, low-carbon steel, and medium-carbon steel. Part of the OSG EXOTAP VA3 series.

Installation Notes

Install using a properly sized tap wrench or CNC tapping chuck rated for the shank diameter. Ensure the workpiece is securely fixtured and the tap is aligned perpendicular to the work surface before starting. Apply a suitable cutting fluid for the material being tapped. Do not reverse the tap under power without confirming the machine or tool supports reversal to avoid breakage.
