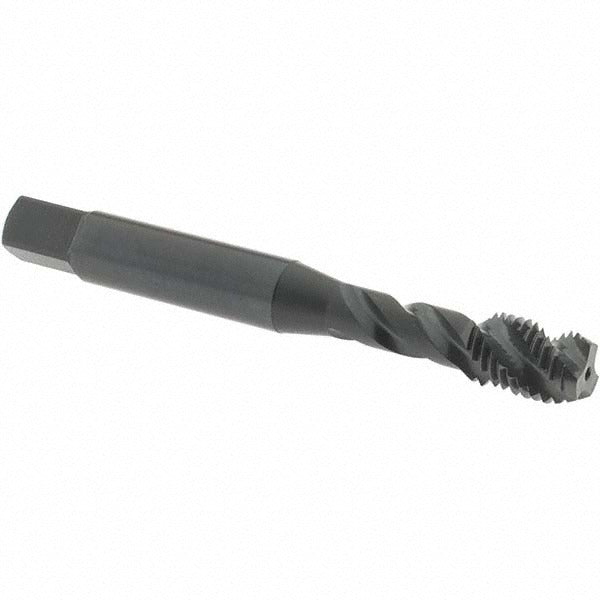

Osg 1722901 Spiral Flute Tap 5/16-24 Unf 3 Flute Hss

Product Description

The OSG 1722901 is a spiral flute tap designed for cutting 5/16-24 UNF internal threads in a range of steel materials. With a 45-degree helix angle and modified bottoming chamfer, it pulls chips up and out of the hole during tapping, making it well suited for blind-hole applications where chip packing is a concern. The tap is manufactured from vanadium high-speed steel and finished with a steam oxide coating to reduce friction and improve wear resistance. It conforms to a 2B class of fit and an H4 thread limit, producing threads that meet standard tolerance requirements for general mechanical assembly. Machinists, tool-and-die workers, and maintenance technicians use this tap in CNC and manual tapping operations.

This tap is intended for use in stainless steel, high-carbon steel, low-carbon steel, and medium-carbon steel workpieces. The right-hand flute direction and right-hand thread orientation are standard for conventional tapping setups. At 2.719 inches overall length with a shank diameter of 0.318 inches, it fits standard tap holders and quick-change tapping heads used in shop and field maintenance environments. The modified bottoming chamfer allows threading closer to the bottom of a blind hole than a standard plug or taper chamfer would permit.

Key Features

• 45-degree helix angle promotes efficient chip evacuation in blind-hole tapping
• Modified bottoming chamfer allows threading near the bottom of blind holes
• Vanadium high-speed steel construction provides hardness and wear resistance in ferrous materials
• Steam oxide coating reduces friction and helps resist built-up edge on the cutting faces
• H4 thread limit and 2B class of fit for consistent, dimensionally accurate threads
• Right-hand thread and right-hand flute direction for standard tapping machine compatibility

Compatibility

Designed for cutting 5/16-24 UNF 2B internal threads in stainless steel, high-carbon steel, low-carbon steel, and medium-carbon steel. Compatible with standard tap holders accepting a 0.318-inch shank diameter.

Installation Notes

Secure the workpiece and ensure the correct tap drill size has been used before starting. Power down or disengage the spindle before loading or removing the tap from the holder. Apply appropriate cutting fluid for the material being tapped, particularly when working with stainless steel. Inspect the tap for wear or chipping before each use and replace if cutting edges show visible damage.
