OSG 1681300 101N General Purpose Straight Flute Hand Tap Right Hand Cutting 5/8-24 Thread H3 Thread Limit

Product Description

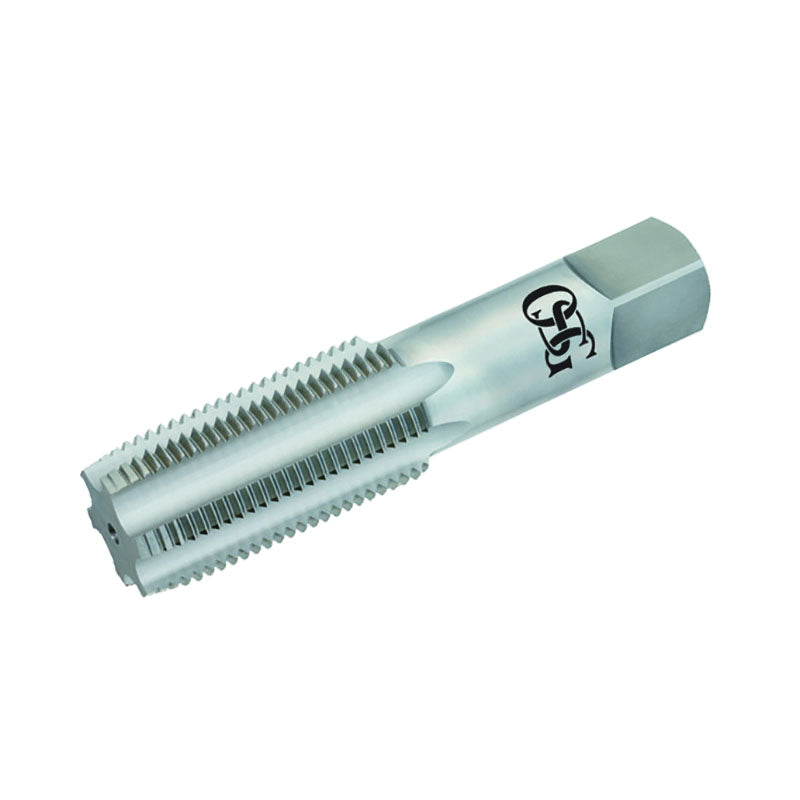

OSG 1681300 is a general purpose straight flute hand tap designed for various threading applications. This tap features a right hand cutting direction and is suitable for use with 5/8-24 threads. Constructed from high speed steel, it provides durability and performance. The tap includes a 3.5P-4.5P plug chamfer and has six flutes to ensure efficient chip removal.

• Material: HSS
• Thread limit: H3
• Overall length: 3.81 inches

Product Highlights

This tap is an excellent choice for those working with both ferrous and non-ferrous metal materials.

Product Information

Standard Information

• Part Number: OSG1681300
• Country of Origin: MX

Technical Specifications

• Type: General Purpose
• Series: 101N
• Thread Size: 5/8-24
• Chamfer Type: 3.5P-4.5P Plug
• Shank Length: 1-25/32 in
• Thread Length: 1.362 in
• Finish/Coating: Bright
• Shank Diameter: 0.48 in
• Number of Flutes: 6
• Measurement System: Imperial
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metal
• Through Coolant: No
