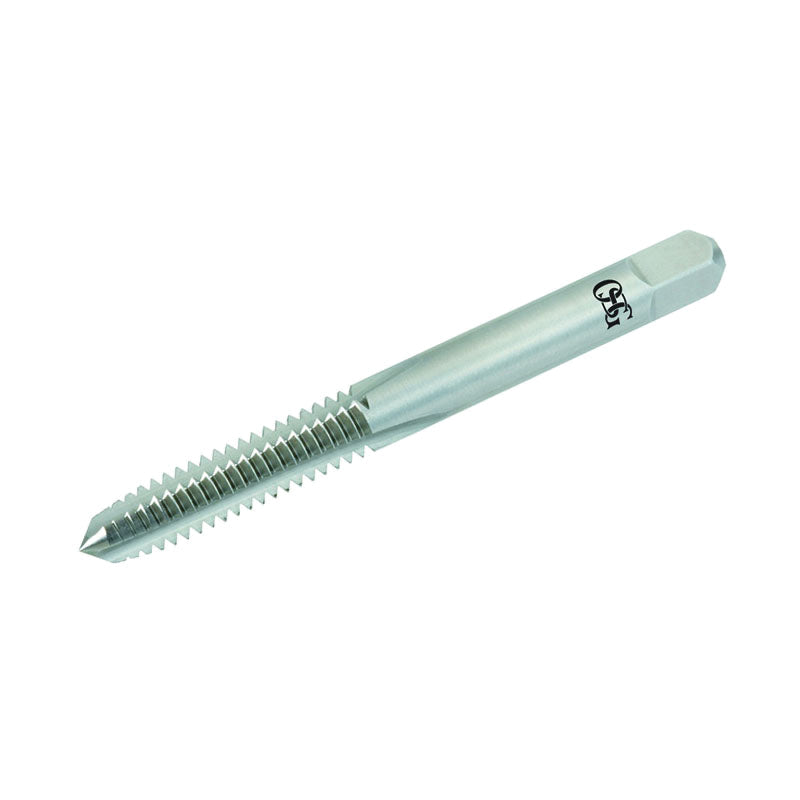

OSG 1660500 101L General Purpose Straight Flute Hand Tap, Left Hand Cutting, 5/16-18 Thread, H3 Thread Limit, 3.5P-4.5P Plug Chamfer

Product Description

The OSG 1660500 101L General Purpose Straight Flute Hand Tap is designed for threading various materials. This tap is a left-hand cutting tool with a thread size of five-sixteenth by eighteen. It features a bright finish and is made from high-speed steel (HSS), providing durability and resistance to wear.

• Left-hand cutting for specific threading needs
• General-purpose use for multiple materials
• Four flutes for efficient chip removal

Product Highlights

Ideal for metalworking and suitable for ferrous and non-ferrous materials.

Product Information

Standard Information

• Brand: OSG
• Country of Origin: MX

Technical Specifications

• Type: General Purpose
• Series: 101L
• Material: HSS
• Thread Size: 5/16-18
• Chamfer Type: 3.5P-4.5P Plug
• Shank Length: 1-3/8 inches
• Thread Limit: H3
• Thread Length: 0.834 inches
• Finish/Coating: Bright
• Overall Length: 2.72 inches
• Shank Diameter: 0.317 inches
• Thread Standard: UNS
• Number of Flutes: 4
• Cutting Direction: Left Hand
• Measurement System: Imperial
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metal
• Through Coolant: No
