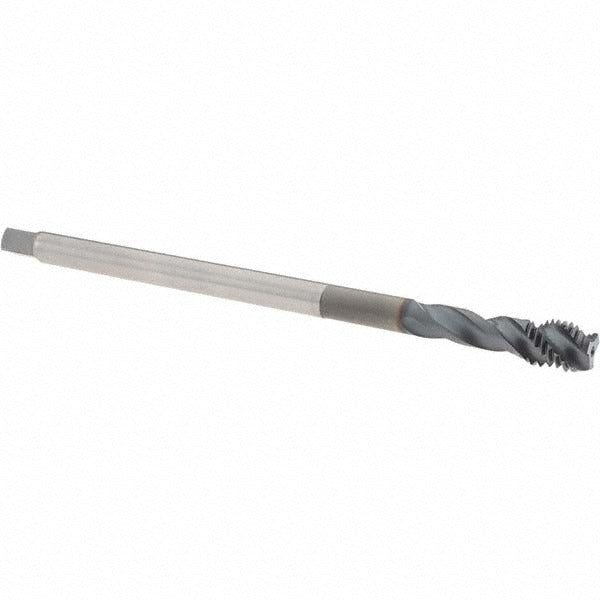

Osg 1652006708 Spiral Flute Tap M12x1.75 3 Flutes 6H

Product Description

The OSG 1652006708 is a spiral flute tap designed for threading M12x1.75 metric holes in a wide range of ferrous and non-ferrous materials. It features three right-hand flutes with a 45-degree helix angle that evacuates chips up and out of the hole, making it well suited for blind-hole applications. The semi-bottoming chamfer allows threading close to the bottom of a hole without fully bottoming out. Built from powdered metal and finished with a TICN (Titanium Carbonitride) coating, this tap delivers improved wear resistance and lubricity compared to standard HSS taps. It conforms to a 6H class of fit and D6 thread limit, producing threads within tight tolerance for precision assemblies.

This tap is used in machining, maintenance, and production environments where M12x1.75 metric internal threads are required. It handles a broad material range including low-, medium-, and high-carbon steel, alloy steel, cast iron, stainless steel, aluminum, and cast aluminum. Typical applications include machine shops, fabrication facilities, and MRO operations. It is installed in CNC machining centers, vertical mills, and manual tapping setups. Coolant-through capability is not available on this tap, so external cutting fluid or cutting paste should be applied during use.

Key Features

• M12x1.75 metric thread size with 6H class of fit and D6 thread limit for precise tolerance control
• 45-degree right-hand spiral flutes evacuate chips upward, reducing clogging in blind holes
• Semi-bottoming chamfer allows threading close to the bottom of a blind hole
• Powdered metal construction provides greater toughness and wear resistance than standard HSS
• TICN coating reduces friction and extends tool life across a wide range of workpiece materials
• Compatible with alloy steel, stainless steel, cast iron, aluminum, and multiple carbon steel grades

Compatibility

Suitable for threading M12x1.75 metric blind holes in alloy steel, aluminum, cast aluminum, cast iron, hardened steel, high-carbon steel, low-carbon steel, medium-carbon steel, and stainless steel workpieces.

Installation Notes

This tap should be installed by a qualified machinist or tooling technician familiar with metric threading standards. Ensure the spindle speed and feed rate are set to values appropriate for the workpiece material and tap diameter before beginning. Apply cutting fluid or tapping paste to the tap and workpiece to reduce heat and extend tool life, as this tap does not support coolant-through delivery. Inspect the tap for chipping or wear before each use and replace if damage is observed.
