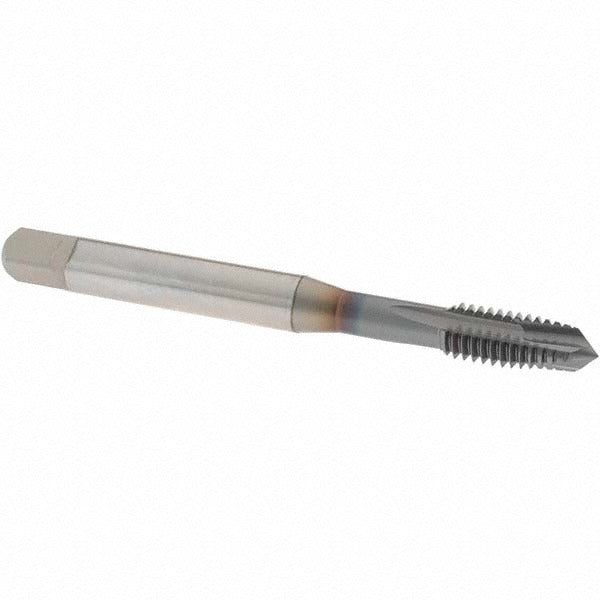

Osg 1651502508 Spiral Point Tap 3/8-16 Unc Ticn

Product Description

The OSG 1651502508 is a high-performance spiral point tap designed for threading 3/8-16 UNC holes in a wide range of metals. It features a plug chamfer, 3 flutes, and a TiCN coating over a powdered metal (PMT15) body. The spiral point geometry pushes chips ahead of the tap and out of the hole, making it well suited for through-hole tapping operations. With an overall length of 3.937 inches and a thread length of 0.751 inches, this tap handles standard through-hole threading with consistent results. It is sized to an H3 thread limit and is manufactured to a 3B class of fit, meeting common tolerance requirements for threaded fastener applications.

This tap is intended for use in through-hole applications across a broad spectrum of metals, including alloy steel, low-carbon steel, medium-carbon steel, high-carbon steel, cast iron, die steel, stainless steel, aluminum, cast aluminum, and hardened steel. The TiCN coating improves wear resistance and reduces built-up edge, which is especially useful when tapping stainless steel or other work-hardening materials. It is a strong fit for production machining environments, job shops, and maintenance repair operations where tool life and thread quality are both priorities.

Key Features

• 3/8-16 UNC thread form, right-hand thread direction
• 3 flutes with spiral point geometry for through-hole chip evacuation
• TiCN coating for extended tool life and reduced friction
• Powdered metal construction (PMT15 grade) for improved toughness and wear resistance
• H3 thread limit, 3B class of fit for standard tolerance threading
• No coolant-through requirement; suitable for conventional flood or dry tapping setups

Compatibility

Rated for use in alloy steel, aluminum, cast aluminum, cast iron, hardened steel, high-carbon steel, low-carbon steel, medium-carbon steel, stainless steel, and die steel. Part of the OSG Series 16515 high-performance spiral point tap line.

Installation Notes

This tap is installed by machinists and toolroom technicians using a tapping machine, CNC machining center, or hand tap wrench. Ensure the workpiece is rigidly fixtured and the tap is properly aligned before engaging the thread. Use appropriate cutting fluid for the workpiece material to maximize tool life and thread quality. Do not reverse a spiral point tap into blind holes, as chip packing can damage the tap or the workpiece thread.
