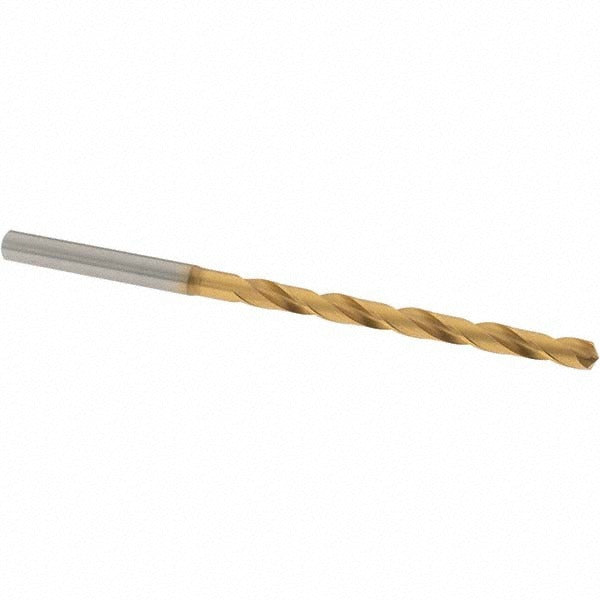

Osg 15169505 Cobalt Jobber Drill Bit Size 18 Tin

Product Description

The OSG 15169505 is a cobalt jobber-length drill bit sized at wire gauge 18 (0.1695 inches / 4.31 mm) with a titanium nitride (TiN) coating for extended tool life in demanding applications. It features a 130-degree split point, a regular spiral flute, and a straight-cylindrical shank measuring 3/16 inches in diameter. Overall length is 3-9/16 inches with a flute length of 2-1/8 inches. The web is R-thinned with a tapered web configuration to reduce thrust and improve chip evacuation. This bit is well suited for machinists, maintenance technicians, and trade professionals drilling in steel and alloy steel.

This drill bit is designed for use in steel and alloy steel workpieces and supports a range of hole-making operations including through drilling, blind hole drilling, cross-hole drilling, and self-centering applications. The TiN coating reduces friction and heat buildup, which extends cutting edge life when working through harder ferrous materials. The straight shank accepts standard drill chucks found on benchtop drill presses, handheld power drills, and CNC machining centers. It is sold individually and is part of OSG Series 1500.

Key Features

• Wire gauge size 18 (0.1695 inches decimal equivalent, 4.31 mm) for precise hole sizing
• Cobalt construction provides heat resistance and hardness for ferrous material drilling
• Titanium nitride (TiN) coating reduces friction and extends bit life
• 130-degree point angle with R-thinned, tapered web reduces entry thrust
• Regular right-hand spiral flute promotes efficient chip removal
• Supports blind hole, cross hole, through hole, and self-centering applications

Compatibility

Designed for drilling steel and alloy steel workpieces (primary workpiece material code P). Accepts any standard drill chuck sized for a 3/16-inch straight-cylindrical shank. Diameter tolerance is plus 0 to minus 0.018 mm.

Installation Notes

Installation of this drill bit is performed by a machinist or trade professional with access to an appropriate drill press, handheld drill, or CNC spindle. Secure the straight shank firmly in a keyed or keyless chuck before operation and verify chuck runout is within acceptable limits. Always wear appropriate eye protection and secure the workpiece before drilling. Cutting fluid or coolant is recommended when drilling harder alloy steels, even though this bit does not support through-coolant delivery.
