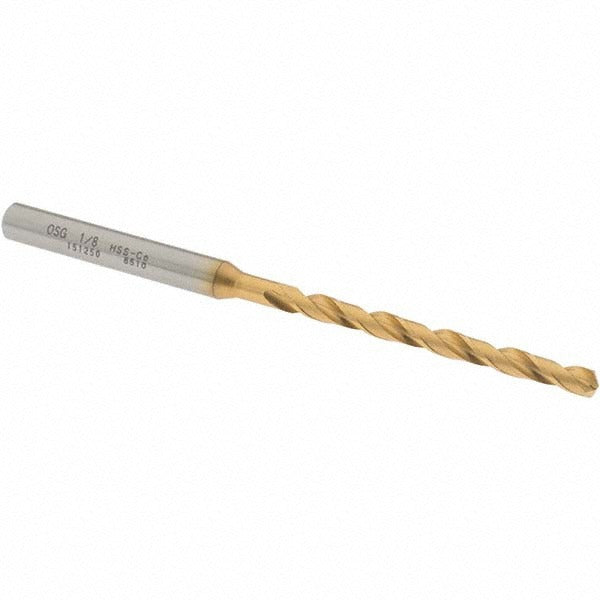

Osg 15125005 Cobalt Jobber Drill Bit 1/8 Inch Tin

Product Description

The OSG 15125005 is a cobalt jobber-length drill bit designed for high-performance drilling in steel and alloy steel. Built to Series 1500 standards, it features a titanium nitride (TiN) coating over a cobalt substrate, delivering increased surface hardness and extended tool life in demanding production environments. The 130-degree split point uses an X-thinned web geometry to promote self-centering and reduce the thrust force needed to start a hole. Overall length is 3.0625 inches with a flute length of 1.625 inches. The straight-cylindrical shank measures 3/16 inch in diameter. Machinists, tool-and-die technicians, and maintenance mechanics are the primary users of this bit.

This bit is suited for drilling blind holes, cross holes, and through holes in steel and alloy steel workpieces. The regular spiral flute and right-hand cut make it compatible with conventional drill presses, CNC machining centers, and hand-held power drills. The TiN coating reduces friction and heat buildup during continuous production runs. No coolant-through capability is present, so flood coolant or cutting oil applied externally is the recommended cooling method when drilling ferrous materials at sustained feed rates.

Key Features

• Cobalt construction with TiN coating for elevated heat and wear resistance in steel applications
• 130-degree X-thinned point promotes self-centering and reduces walking on entry
• Tapered web configuration with 2 regular spiral flutes for efficient chip evacuation
• Right-hand cut, straight-cylindrical shank for standard drill chuck compatibility
• Rated for blind hole, cross hole, and self-centering drilling operations
• Diameter tolerance of +0 to -0.018 mm for consistent hole sizing

Compatibility

Designed for use in steel and alloy steel workpieces as indicated by the P-category primary workpiece material code. Fits any standard drill chuck accepting a 3/16-inch straight-cylindrical shank.

Installation Notes

Installation is performed by machinists or maintenance technicians using a keyed or keyless drill chuck. Ensure the shank is fully seated and the chuck is tightened securely before beginning a cut. Power down the machine and relieve all stored energy before changing bits. Apply an appropriate cutting oil or flood coolant externally, as this bit does not support coolant-through delivery.
