OSG 1431100 107 Premium Spiral Flute Tap Right Hand Cutting 3/8-24 Thread

Product Description

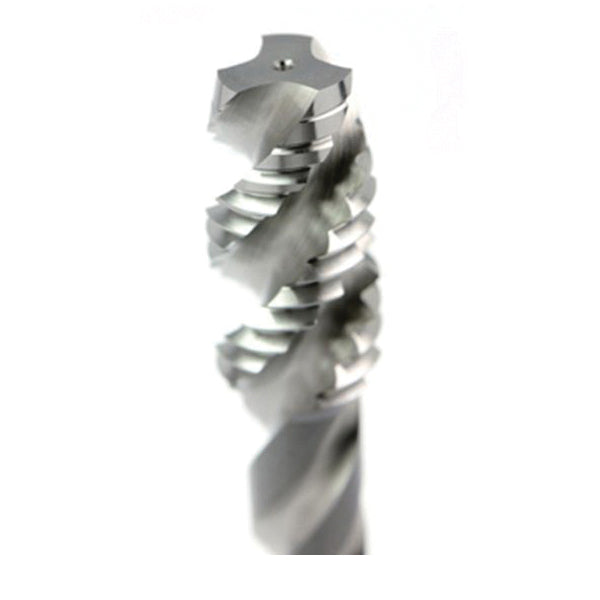

The OSG 1431100 is a premium spiral flute tap. This tool is designed for threading applications in various materials. It has a right-hand cutting action and a 3/8-24 thread size. This product is ideal for use with aluminum, cast aluminum, cast iron, and both low and high carbon steel.

• Made from HSS-E material for enhanced wear resistance.
• Features a bright finish that improves mechanical lubricity.
• Equipped with a 1.5P-2P bottoming chamfer for efficient threading.

Product Highlights

The OSG 1431100 tap is built for durability and precision. It ensures smooth threading operations and effective chip evacuation.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG

Technical Specifications

• Size: 3/8 in
• Type: Premium
• Thread Size: 3/8-24
• Chamfer Type: 1.5P-2P Bottoming
• Shank Length: 1-21/32 in
• Thread Length: 0.771 in
• Overall Length: 2.93 in
• Shank Diameter: 0.38 in
• Number of Flutes: 3
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum, Cast Aluminum, Cast Iron, Low/Medium/High Carbon Steel
• Through Coolant: No
