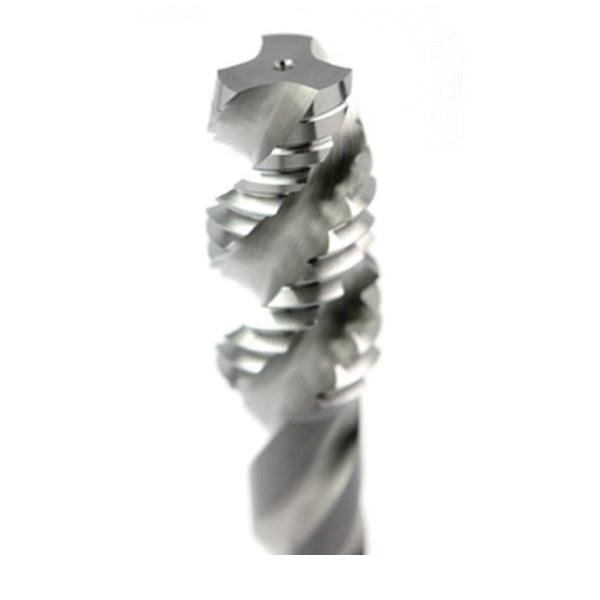

OSG 1430901 107 Premium Spiral Flute Tap, Right Hand Cutting, 3/8-16 Thread, H3 Thread Limit, 1.5P-2P Bottoming Chamfer

Product Description

The OSG 1430901 is a premium spiral flute tap designed for precise threading. This tap features a right-hand cutting direction, and is compatible with a 3/8-16 thread size. It has a 1.5P-2P bottoming chamfer, making it ideal for various applications.

• Right hand cutting for efficient threading
• Compatible with aluminum, cast aluminum, cast iron, and low/medium/high carbon steel
• Steam oxide finish improves lubrication

Product Highlights

This tap allows for smooth cutting and is equipped with three flutes for better chip evacuation.

Product Information

Standard Information

• Brand: OSG
• Country of Origin: BR

Technical Specifications

• Series: 107
• Material: HSS-E
• Thread Size: 3/8-16
• Chamfer Type: 1.5P-2P Bottoming
• Shank Length: 1-21/32 inches
• Thread Length: 0.771 inches
• Overall Length: 2.93 inches
• Shank Diameter: 0.38 inches
• Number of Flutes: 3
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum, Cast Aluminum, Cast Iron, and Low/Medium/High Carbon Steel
• Through Coolant: No
