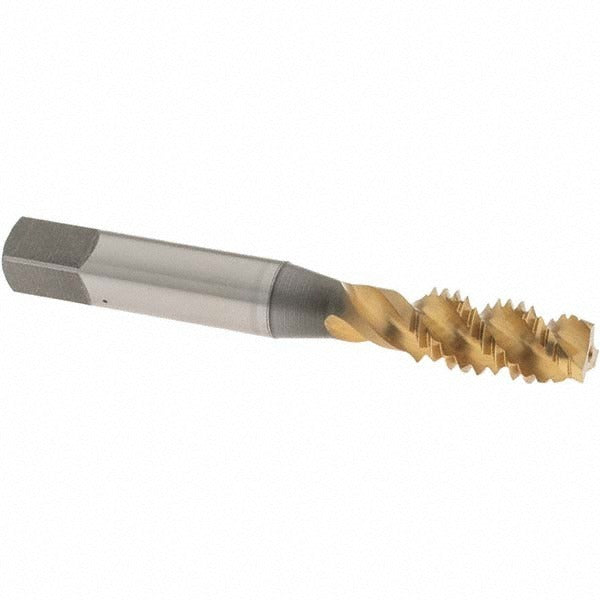

Osg 1430805 Spiral Flute Tap 3/8-16 Unc Tin Hss

Product Description

The OSG 1430805 is a spiral flute tap designed for cutting internal 3/8-16 UNC threads in a range of ferrous and non-ferrous metals. Built from high-speed steel (HSS) with a titanium nitride (TiN) coating, it combines wear resistance with reduced friction for cleaner thread engagement and longer tool life. The plug chamfer provides a gradual lead-in, making it well suited for through-hole tapping applications. With a 50-degree helix angle and 3 right-hand flutes, it efficiently evacuates chips upward out of the hole, reducing the risk of chip packing in deeper cuts. Licensed machinists, tool-and-die makers, HVAC fabricators, and millwrights commonly use this tap on production and maintenance work.

This tap is intended for use in aluminum, cast aluminum, cast iron, low-carbon steel, medium-carbon steel, and high-carbon steel. It carries a 3B class of fit, which is the standard tolerance class for general-purpose threaded fastener applications. The H3 thread limit designation indicates the allowable oversize range above basic pitch diameter, which is appropriate for TiN-coated taps where the coating adds a small amount to the tool diameter. It fits into standard tap holders and is compatible with CNC tapping cycles, drill press setups, and manual tapping with a tap wrench.

Key Features

• 3/8-16 UNC right-hand thread, 3B class of fit with H3 thread limit
• High-speed steel construction with TiN coating for extended tool life and reduced friction
• 50-degree right-hand spiral flute geometry for upward chip evacuation in through-hole applications
• Plug chamfer for gradual thread engagement and reduced starting torque
• Rated for aluminum, cast aluminum, cast iron, low-carbon, medium-carbon, and high-carbon steel
• Series 107 — no coolant-through feature; suitable for flooded coolant or tapping fluid application

Compatibility

Designed for use in through-hole tapping of 3/8-16 UNC threads across aluminum, cast aluminum, cast iron, high-carbon steel, low-carbon steel, and medium-carbon steel workpieces. Fits standard straight-shank tap holders sized for the 0.381-inch shank diameter.

Installation Notes

This tap should be installed by a qualified machinist or maintenance technician familiar with threading operations. Always secure the workpiece and ensure the tap is properly aligned with the pilot hole before engaging the drive. Apply an appropriate cutting fluid or tapping oil for the base material being threaded to maximize tap life and thread quality. Follow applicable shop safety procedures and machine guarding requirements when operating under power.
