OSG 1430101 107 Premium Spiral Flute Tap, Right Hand Cutting, 1/4-20 Thread, H3 Thread Limit, 1.5P-2P Bottoming Chamfer

Product Description

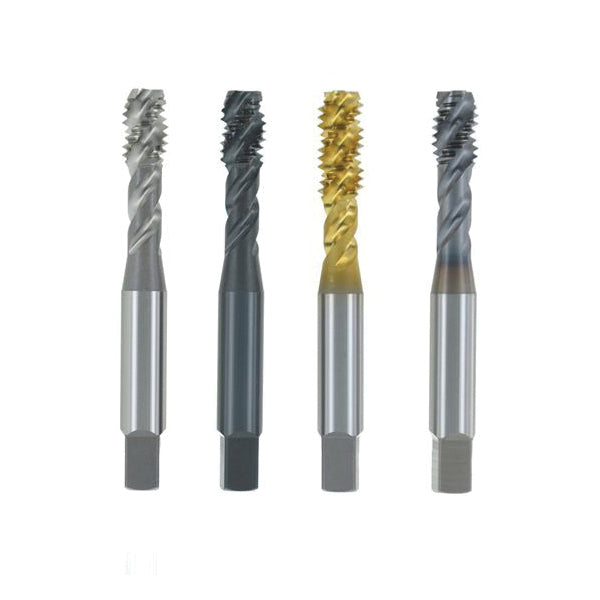

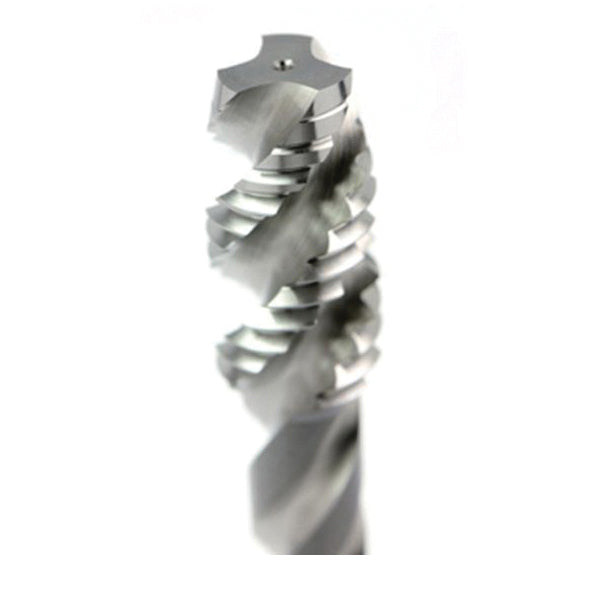

The OSG Spiral Flute Tap with MPN 1430101 is designed for precision threading. This tap is ideal for creating threads in various materials including aluminum, cast iron, and carbon steel. It features a right-hand cutting direction and a 1/4-20 thread size. The tap also incorporates premium HSS-E material with a steam oxide finish, which enhances durability and performance.

• Right Hand Cutting Direction
• Three Flutes for Efficient Chip Evacuation
• H3 Thread Limit for Precision Tapping

Product Highlights

Utilize the OSG Spiral Flute Tap for reliable threading in tough materials. The design includes a 1.5P-2P bottoming chamfer for improved threading performance.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG

Technical Specifications

• Size: 1/4 in
• Type: Premium
• Thread Size: 1/4-20
• Chamfer Type: 1.5P-2P Bottoming
• Shank Length: 1-15/32 in
• Thread Length: 0.645 in
• Finish/Coating: Steam Oxide
• Overall Length: 2-1/2 in
• Shank Diameter: 0.255 in
• Thread Standard: UNC
• Number of Flutes: 3
• Measurement System: Imperial
• Material Application: Aluminum, Cast Aluminum, Cast Iron, Low/Medium/High Carbon Steel
• Through Coolant: No
