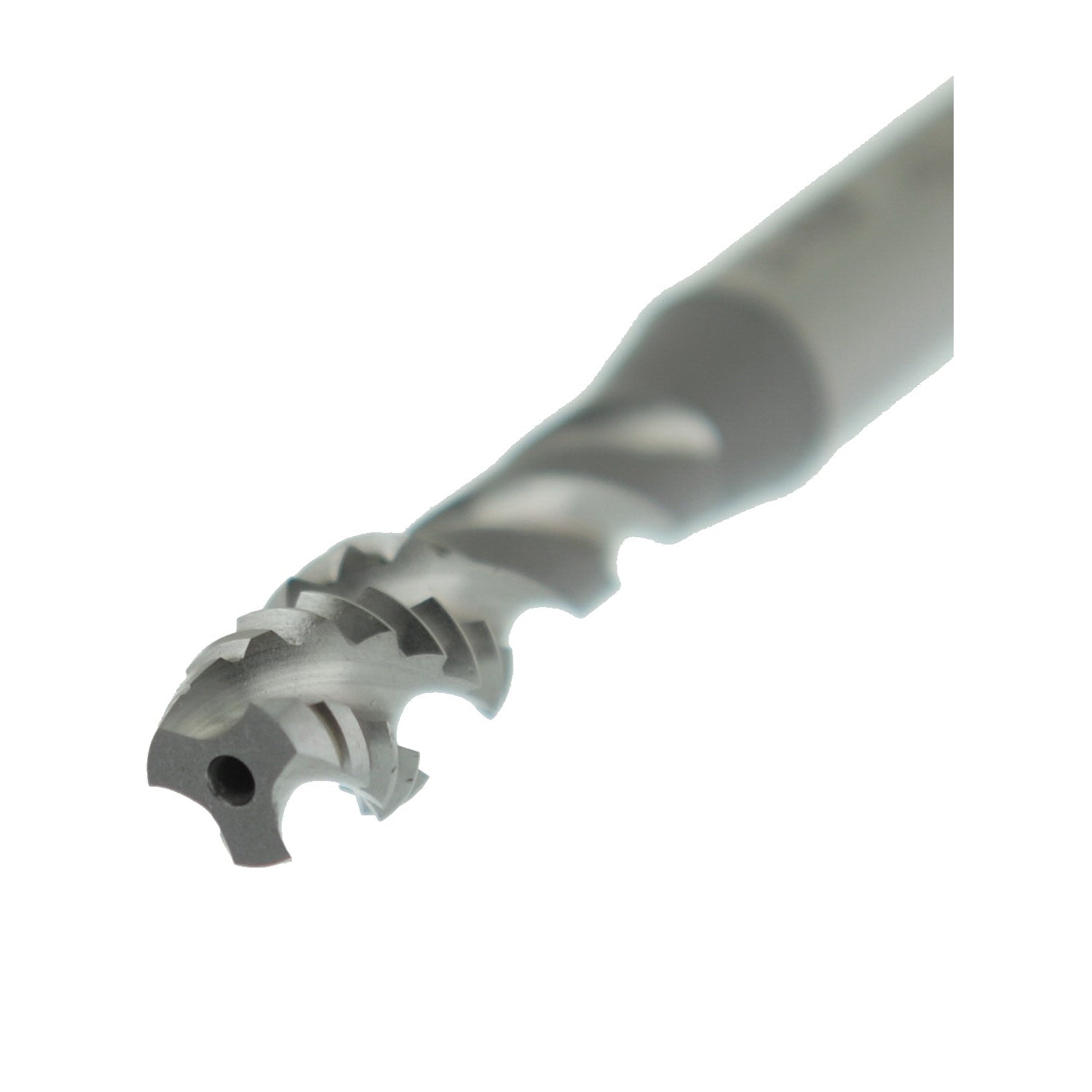

OSG 1430000 107 General Purpose Spiral Flute Tap Right Hand Cutting 1/4-20 Thread H3 Thread Limit

Product Description

The OSG 1430000 107 General Purpose Spiral Flute Tap is designed for creating threads in various materials. This right hand cutting tap has a thread size of 1/4-20 and features a bright finish for enhanced performance. It is made from high-speed steel (HSS) and has three flutes, ensuring efficient chip removal during operation.

• Right hand flute direction
• Thread length of 0.645 inches
• Overall length of 2.5 inches

Product Highlights

This tap is ideal for working with both ferrous and non-ferrous metals. It delivers precision and reliability in applications that require exact screw threading.

Product Information

Standard Information

• Brand: OSG
• Type: General Purpose

Technical Specifications

• Series: 107
• Material: HSS
• Thread Size: 1/4-20
• Chamfer Type: 4P-4.5P Plug
• Thread Limit: H3
• Thread Length: 0.645 inches
• Finish/Coating: Bright
• Overall Length: 2.5 inches
• Shank Diameter: 0.255 inches
• Flute Direction: Right Hand
• Thread Standard: UNC
• Number of Flutes: 3
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Ferrous and Non-Ferrous Metals
• Through Coolant: No
