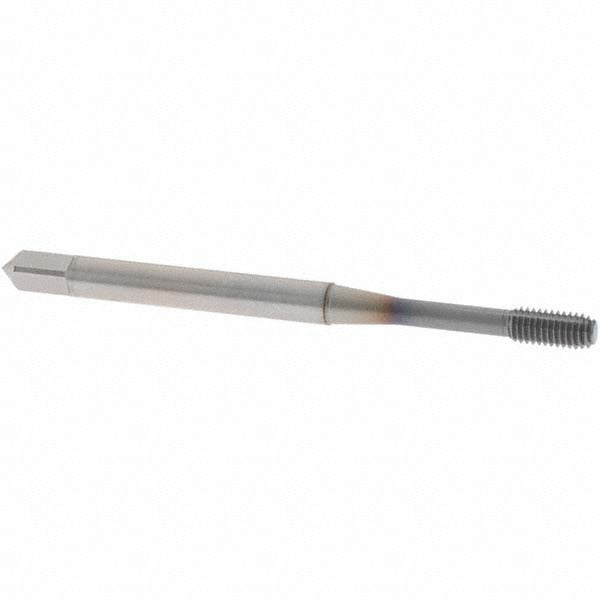

Osg 1415001208 Thread Forming Tap M3x0.50 Metric Coarse

Product Description

The OSG 1415001208 is a thread forming tap designed for M3x0.50 Metric Coarse threading in blind hole applications. Unlike cutting taps, this forming tap displaces material rather than cutting it, producing stronger threads with no chips to clear. Manufactured from Powdered Metal High-Speed Steel (PM-HSS) and finished with a TiCN coating, it is built for demanding production environments where tool life and thread quality are priorities. The modified bottoming chamfer allows threading close to the bottom of a blind hole, and the 2 to 2.5 thread chamfer length provides a controlled lead-in. Licensed machinists and CNC operators are the primary users of this tool.

This tap is suited for threading blind holes in a wide range of workpiece materials including alloy steel, carbon steel, die steel, hardened steel, stainless steel, and aluminum. The EXOTAP VP-NRT series is optimized for high-speed tapping operations on CNC machining centers and tapping machines. With a tapping depth of 0.6299 inches (16.00 mm) and an overall length of 1.9291 inches (49.20 mm), it fits standard tool holders for the M3 size class. Right-hand thread direction is standard.

Key Features

• Thread forming (chipless) design produces stronger threads and eliminates chip removal in blind holes
• Powdered Metal High-Speed Steel construction provides superior wear resistance over conventional HSS
• TiCN coating reduces friction and extends tool life across a broad range of workpiece materials
• Modified bottoming chamfer with 2 to 2.5 chamfered threads for threading close to hole bottom
• Class of fit 3B with D3 thread limit for precise thread tolerance control
• Compatible with alloy steel, aluminum, carbon steel, die steel, hardened steel, and stainless steel

Compatibility

Designed for blind hole threading in alloy steel, aluminum, carbon steel, die steel, hardened steel, and stainless steel workpieces. Material application codes P, M, and N confirm suitability across ferrous and non-ferrous materials in standard M3x0.50 Metric Coarse thread applications.

Installation Notes

This tap is installed and operated by machinists or CNC programmers using standard tap holders or floating tap chucks suited for the M3 shank diameter. Ensure proper thread forming lubricant or coolant is applied, as this is a forming tap and does not use coolant-through flow. Verify hole diameter and depth meet the requirements for M3x0.50 form tapping before operation. Do not attempt to use this tap as a cutting tap or in through-hole configurations without confirming application suitability.
