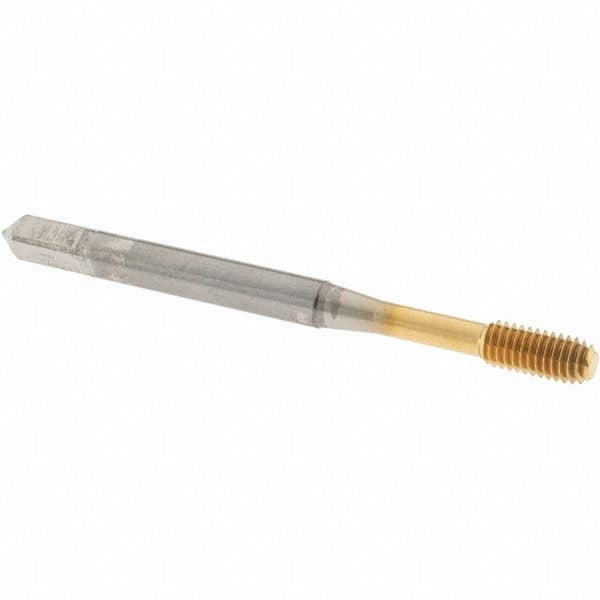

Osg 1410102705 Thread Forming Tap M4x0.70 Metric Coarse

Product Description

The OSG 1410102705 is a thread forming tap in the HY-PRO NRT series, designed for M4x0.70 metric coarse threading in blind hole applications. Unlike cutting taps, thread forming taps displace material rather than cutting it, producing stronger threads with no chips to clear. This tap features a cobalt construction with a TiN (titanium nitride) coating for extended tool life under demanding conditions. The modified bottoming chamfer, with 2 to 2.5 chamfered threads, allows threading close to the bottom of a blind hole. It carries a 6H class of fit with a D6 thread limit, meeting standard tolerance requirements for metric fastener assemblies.

This tap is suited for blind hole threading across a wide range of materials, including alloy steel, carbon steel, die steel, hardened steel, stainless steel, and aluminum. The cobalt base material and TiN coating make it a practical choice for production environments where tool wear and heat generation are concerns. It is installed by machinists and tool and die professionals using standard tapping equipment, CNC machining centers, or manual tap handles in light to medium production work.

Key Features

• Thread forming design displaces material for chip-free, stronger threads in blind holes
• Cobalt construction resists heat and wear across tough workpiece materials
• TiN coating extends tool life and reduces friction during tapping
• Modified bottoming chamfer (2 to 2.5 threads) allows threading close to hole bottom
• 6H class of fit with D6 thread limit for standard metric tolerance compliance
• Right-hand thread direction for conventional tapping setups

Compatibility

Designed for blind hole thread forming in alloy steel, aluminum, carbon steel, die steel, hardened steel, and stainless steel workpieces. Material application codes P and N apply.

Installation Notes

Thread forming taps require adequate lubrication and correct spindle speed to avoid galling, particularly in stainless steel and hardened steel. Ensure the pilot hole diameter matches the recommended forming tap drill size for M4x0.70 metric coarse before tapping. Secure the workpiece firmly and verify that the tap is aligned perpendicular to the hole entry. On CNC equipment, use a rigid tapping cycle appropriate for form tapping; do not use a cutting tap cycle.
