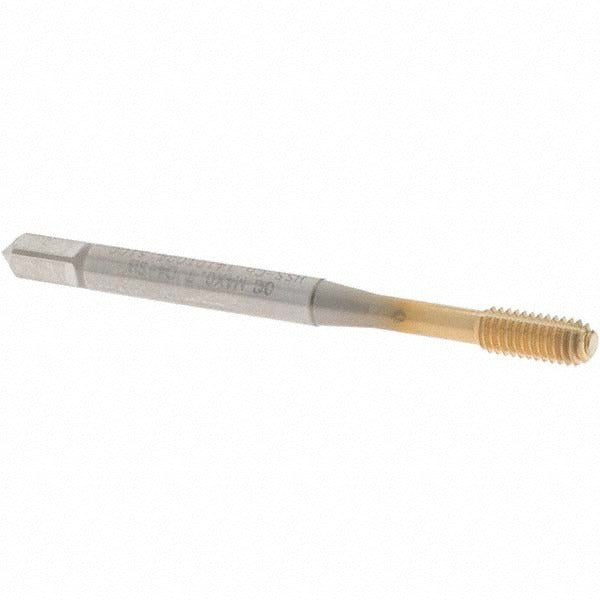

Osg 1410102405 Thread Forming Tap M4x0.70 Metric Coarse

Product Description

The OSG 1410102405 is a thread forming tap in the HY-PRO NRT series, designed for cold-forming internal threads in blind holes without cutting chips. Built from cobalt high-speed steel and finished with a TiN coating, this tap produces M4x0.70 metric coarse threads to a 4H class of fit with a D4 thread limit. The bottoming chamfer (1 to 1.5 thread pitch) allows threading close to the bottom of a blind hole. Right-hand thread direction. Overall length is 2.126 inches with a thread length of 0.3307 inches and a tapping depth of 0.7717 inches.

This tap is suited for production and maintenance threading operations in alloy steel, carbon steel, aluminum, die steel, hardened steel, and stainless steel workpieces. The thread forming method displaces material rather than cutting it, resulting in stronger threads and no chip evacuation concerns in blind hole applications. Machinists, tool and die makers, and maintenance technicians working with M4 fastener threads in tight-tolerance assemblies will find this tap appropriate for both CNC and manual tapping operations.

Key Features

• Thread forming (chipless) design eliminates chip packing in blind holes
• Cobalt HSS construction provides heat and wear resistance in tough alloys and stainless steel
• TiN coating reduces friction and extends tool life in high-volume applications
• Bottoming chamfer (1 to 1.5P) threads to near-bottom of blind holes
• 4H class of fit and D4 thread limit for standard metric tolerance requirements
• No coolant-through required; suitable for conventional flood or manual tapping

Compatibility

Designed for M4x0.70 metric coarse blind hole threading in alloy steel, aluminum, carbon steel, die steel, hardened steel, and stainless steel. Material application codes P and N per ISO workpiece classification.

Installation Notes

Thread forming taps require higher torque than cutting taps and must be used with a tapping fluid or cutting oil appropriate for the workpiece material. Secure the workpiece and ensure the tap is aligned perpendicular to the hole before engaging to avoid cross-threading or tap breakage. Use a calibrated tapping chuck or torque-controlled driver when possible to avoid overloading the tap shank. Follow applicable shop safety practices and machine guarding requirements when power tapping.
