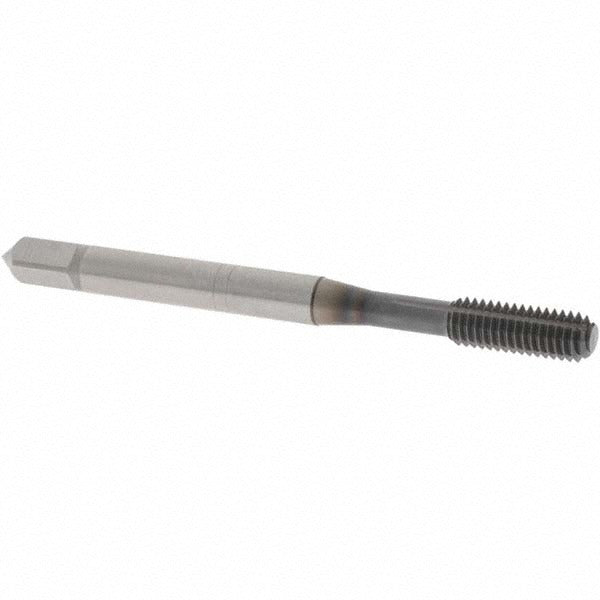

Osg 1405005608 Thread Forming Tap 10-32 Unf Bottoming Hss

Product Description

The OSG 1405005608 is a thread forming tap in the EXOTAP VP-NRT series, designed for bottoming applications in blind holes with a 10-32 UNF thread form. Manufactured from powdered metal high-speed steel with a TiCN (titanium carbonitride) coating, this tap cold-forms internal threads without cutting, eliminating chips and reducing the risk of chip packing in blind holes. It carries a Class 3B thread fit with an H3 thread limit, making it suitable for precision threading where tight tolerances are required. Licensed machinists and toolroom technicians use this tap in CNC machining centers and manual tapping operations alike.

This tap is designed for blind hole threading across a range of workpiece materials, including alloy steel, aluminum, carbon steel, die steel, hardened steel, and stainless steel. The bottoming chamfer (1 to 1.5 thread lead) allows threading close to the bottom of a blind hole, maximizing usable thread depth. The right-hand thread direction and standard shank dimensions make it compatible with common tap holders and CNC rigid tapping setups. It is well-suited for production environments where chip-free threading and extended tool life are priorities.

Key Features

• Thread forming (chipless) design eliminates chip evacuation concerns in blind holes
• Powdered metal high-speed steel construction provides improved wear resistance over standard HSS
• TiCN coating reduces friction and extends tool life across ferrous and non-ferrous materials
• Bottoming chamfer (1 to 1.5P) enables threading close to hole bottom for maximum thread engagement
• H3 thread limit and Class 3B fit support precision tolerance requirements
• Right-hand thread direction compatible with standard CNC rigid tapping and manual tap handles

Compatibility

Designed for use in blind hole threading applications across alloy steel, aluminum, carbon steel, die steel, hardened steel, and stainless steel workpieces. Material application codes P, M, and N apply.

Installation Notes

Thread forming taps require a specific forming tap drill size, which is larger than a standard cut-tap drill size for the same thread - confirm the correct drill diameter before use to achieve proper thread fit. Ensure the workpiece is securely fixtured and the spindle is square to the hole before tapping. Use a thread forming lubricant or cutting fluid appropriate for the workpiece material. This tap does not have coolant-through capability, so external lubrication is required.
