Osg 1400120605 Thread Forming Tap 10-32 Unf Cobalt Tin

Product Description

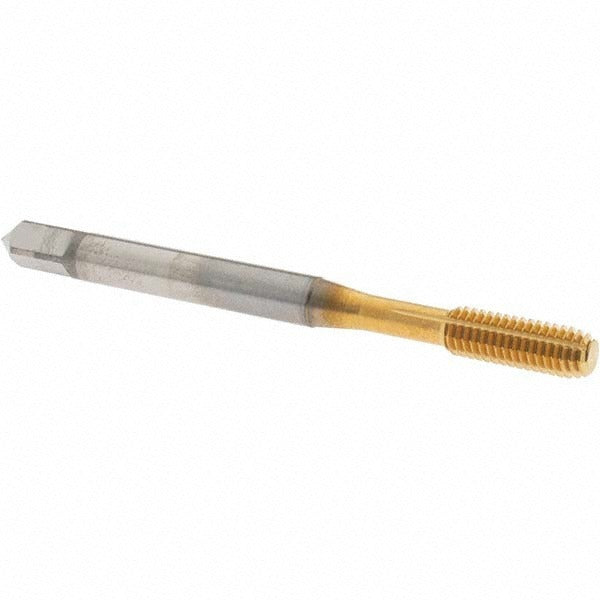

The OSG 1400120605 is a thread forming tap in the HY-PRO NRT series, designed for cold-forming internal 10-32 UNF threads without cutting or generating chips. Made from cobalt high-speed steel with a titanium nitride (TiN) coating, it is built for durability and heat resistance in demanding tapping applications. The modified bottoming chamfer with 2 to 2.5 chamfered threads allows threading close to the bottom of blind holes. At 2.375 inches overall length with a 0.194-inch shank diameter, it fits standard tap handles and machine holders used in metalworking and mechanical assembly trades.

This tap is suited for blind hole threading in a wide range of ferrous and non-ferrous materials including alloy steel, carbon steel, die steel, hardened steel, stainless steel, and aluminum. It is used by machinists, toolmakers, and mechanical contractors in production and maintenance environments where clean, strong formed threads are required. The right-hand thread direction and H6 thread limit support Class 2B fit tolerances common in precision fastener applications.

Key Features

• Thread forming design produces no chips, reducing clogging risk in blind holes
• Cobalt construction provides increased hardness and heat resistance over standard HSS
• TiN coating reduces friction and extends tool life across multiple material types
• Modified bottoming chamfer threads close to blind hole bottoms with 2 to 2.5 chamfered threads
• H6 thread limit holds Class 2B fit for precision thread tolerance requirements
• Compatible with alloy steel, carbon steel, die steel, hardened steel, stainless steel, and aluminum

Compatibility

Designed for blind hole thread forming in alloy steel, aluminum, carbon steel, die steel, hardened steel, and stainless steel workpieces requiring 10-32 UNF right-hand threads at Class 2B fit.

Installation Notes

Thread forming taps require proper lubrication and a correctly sized forming tap drill hole, which differs from a standard cut tap drill size — consult the OSG HY-PRO NRT drill chart for the recommended hole diameter. Use in a rigid tapping setup or CNC machine with synchronized feed to avoid tap breakage. Power down or de-energize any machine spindle before changing tooling. Coolant-through is not supported on this tap; apply cutting fluid externally before and during the tapping cycle.
