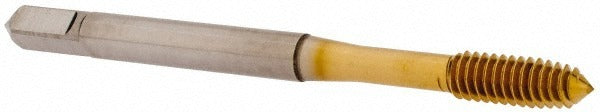

Osg 1400115205 Thread Forming Tap 8-32 Unc Plug

Product Description

The OSG 1400115205 is a thread forming tap designed for producing internal threads without cutting, eliminating chips in the process. Part of the HY-PRO NRT series, it is ground from cobalt high-speed steel and finished with a titanium nitride (TiN) coating for extended tool life and heat resistance. This plug-style tap carries a 4 to 4.5 thread chamfer length and is rated to Class of Fit 3B with a Thread Limit of H3. Overall length is 2.125 inches with a tapping depth of 0.752 inches. It is suited to machine shops, maintenance facilities, and trade professionals performing precision threading operations.

This tap is configured for right-hand, through-hole threading of 8-32 UNC threads. The TiN coating and cobalt substrate make it appropriate for use in a range of ferrous and non-ferrous materials including alloy steel, carbon steel, die steel, hardened steel, stainless steel, and aluminum. The plug chamfer makes it well suited for through-hole applications where thread starting does not require a long lead-in. It is sold individually and used in standard tapping operations with a tap wrench, drill press, or CNC machine tool.

Key Features

• Thread forming (cold-forming) design produces no chips, reducing clogging risk in blind or through holes
• Cobalt high-speed steel construction provides heat resistance beyond standard HSS taps
• TiN coating extends tool life and reduces friction during tapping
• Plug chamfer with 4 to 4.5 thread lead suits through-hole threading applications
• H3 thread limit and Class 3B fit rating for precision thread production
• Compatible with multiple material types including stainless steel and hardened steel

Compatibility

Designed for through-hole threading of 8-32 UNC internal threads in alloy steel, aluminum, carbon steel, die steel, hardened steel, and stainless steel workpieces. Material application codes P and N apply.

Installation Notes

Thread forming taps are installed by machinists or tool and die professionals using a tap wrench, tapping head, or CNC rigid tapping cycle. Ensure the pilot hole diameter is sized correctly for thread forming, as forming taps require a larger pilot hole than cutting taps for the same thread size. Apply appropriate tapping fluid or cutting oil for the workpiece material before beginning the operation. Secure the workpiece fully before tapping to prevent movement and thread damage.
